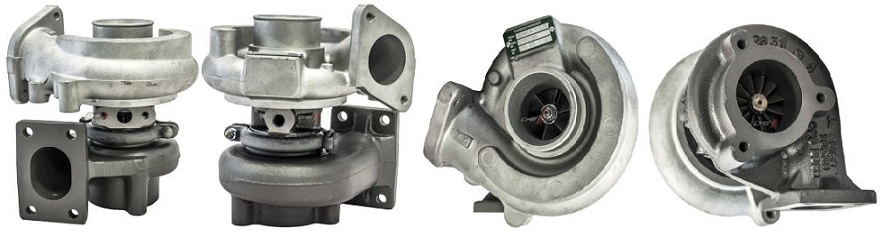

Caterpillar Earth Mover TD04HL4 Turbo 49189-02720

Caterpillar Earth Mover TD04HL4 Turbo 49189-02720
Item# turbo-tractor-caterpillar-TC-49189-02720
$980.00
Availability: Usually ships the next business day

Product Description


Part Number49189-02720
Previous Part Number4918902720, 49189-02721
OE number314-9898, 314-9972, 3149898, 3149972, 315-7768, 3157768
DescriptionMitsubishi MHI/CAT Construction, Caterpillar, Loader
CHRA49389-08550 (4938908550)(1401404944) $390.00 NEW IN STOCK, MADE IN UK
Turbo ModelTD04HL4-11TK3-7.0
Engine3044C 4D13T, C3.4L
ManufacturerMitsubishi
FuelDiesel
Displacement 4 Cylinders
KW55/75
Bearing Housing49189-26400 (Oil Cooled)(1401404468) $62.00 NEW IN STOCK
Turbine Wheel(Ind. 45.65 mm, Exd. 52.1 mm, Trm 8.55, 11 Blades)(1401404444) $90.81 NEW IN STOCK
Comp. Wheel(Ind. 38.76 mm, Exd. 56. mm, Trm 6.4, 6+6 Blades, Flatback)(1401404412) $65.21 NEW IN STOCK
Back plate, Seal plate49135-00044 (Flatback)(1401635300) $15.94 NEW IN STOCK
Heat shield Number49183-19300 (1401404347) $14.64 NEW IN STOCK
Repair Kit49189-84000 (Major)(S/Back)(1401404754) $98.00 NEW IN STOCK
Turbine Housing 49189-120400
Gasket (oil outlet)210317 (5I7689) (Paper) $4.41
Gasket (turbine inlet)5I7933 $18.67
Gasket (Comp. Outlet)2344818 $16.31
ManufacturerMitsubishi
ConditionRebuilt

Applications

Caterpillar Construction Loader with 3044C 4D13T Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
