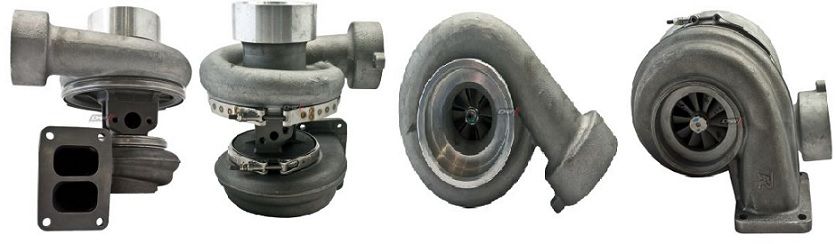

Caterpillar Earth Moving 4LE-504 Turbo 147760

Caterpillar Earth Moving 4LE-504 Turbo 147760
Item# turbo-earth-moving-cat-TC-147760
$1,631.35
Availability: Usually ships the next business day

Product Description


Part Number147760
Previous Version147452, 147452R, 147760, 147760R, 148497, 148497R, 149293, 149293R, 150778, 150778R, 154738, 154738R, 154741, 154741R, 157521, 157521R, 172491, 172491R, 180277, 180277R, 180299, 180299R, 182352, 182352R, 183846, 183846R, 310146,
OE number0R5385, 4N3752, 4N9544, 4N9553, 6N5374, 7N5892, 7S8424, 8S1325, 8S4985, 8S9236, 9S8997, 2P2770, 2P2808
Description Earth Moving
CHRA310125 (147709, 147709R, 148579, 148579R, 178207, 178207R, 178207, 178207R, 180296, 180296R, 478207, 480296)(8S9426, 0R5895, 4N9536, 4N9536, 4N9536, 8S4579, 8S4580, 8S4579, 8S4580, 8S4579, 8S4580, 1679671) $1078.75 NEW IN STOCK
Turbo Model4LE-504, E-504
Fuel Diesel
Bearing Housing159505 (0R5406, 4N9540)(Oil Cooled) $135.00 NEW IN STOCK
Turbine Wheel 184409 (310838, 0R5391, 8S4989)(Ind. 72.13 mm, Exd. 91.46 mm, Trm 11.81, 10 Blades) $301.95 NEW IN STOCK
Comp. Wheel 182353 (6N7461, 7S7697)(Ind. 62.33 mm, Exd. 94. mm, Trm 6.12, 6+6 Blades) $155.00 NEW IN STOCK
Back plate 197651 (51135, 5S4556, 142066)(1250403300, 1250504401) $19.50 NEW IN STOCK
Heat shield Number 188086 (148046, 4N9556, 8S9221)(159535, 49162-13101)(2030016143) $19.50 NEW IN STOCK
Repair Kit 318350 (318381)(1250040751, 5000020110) $119.21 NEW IN STOCK
Gasket (turbine inlet)132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket (oil outlet) 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
Gasket (oil inlet)129113 $4.38
Gasket Kit 215082 (2090505397)
NOTE180299 (7S8424, 4N9544, 4N3752, 2P2770, 8S9425, 9L3062, 8S1325)
ManufacturerBorg Warner - 3K - Schwitzer

Use 180299

Applications

Caterpillar Earth Moving 3306

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
