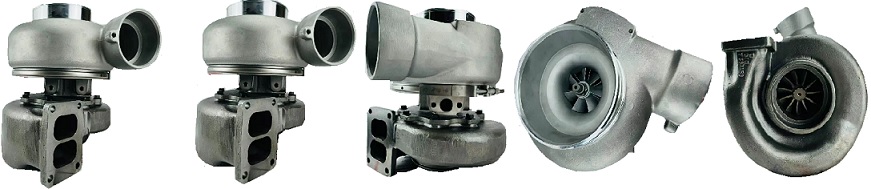

1976-06 Caterpillar Generation Set, Industrial 4HF-864 Turbo 182782

1976-06 Caterpillar Generation Set, Industrial 4HF-864 Turbo 182782
Item# turbo-earth-moving-cat-TC-182782
$1,990.25
Availability: Usually ships the next business day

Product Description


Part Number182782
Previous Part Number316214
OE number6N8461, 6N-8461
Description D399-Generation Set, Industrial
CHRA155351 (0R5870, 2O0985, 6N6528) $2140.93 NEW IN STOCK
Interchangeable CHRA 158104 (178012, 458104, 478012)(0R5884, 1N4363, 4N4566) $1,517.88
Turbo Model 4HF-864
Engine D399
Generator Set EngineD399, SR4
Generator SR4
Industrial Engine SR4, D399
FuelDiesel
Angle α (compressor housing)107°
Angle β (turbine housing) 90°
Bearing Housing137568 (0R5399, 2S1309, 4N4042, 9M9929)(Oil Cooled) $528.14 NEW IN STOCK
Turbine Wheel181480 (159750)(0R5390, 7S7759, 159750, 0R5389, 2S1530, 9M9933)(Ind. 93.2 mm, Exd. 113. mm, Trm 16.85, 13 Blades) $507.25 NEW IN STOCK
Comp. Wheel155353 (2P0986)(Ind. 83.9 mm, Exd. 122. mm, Trm 9, 7+7 Blades, Superback) $496.22 NEW IN STOCK
Back plate139052 (1S3169, 2S1307) $18.42 NEW IN STOCK
Heat shield Number137570 (9M9938) $153.64 NEW IN STOCK
Repair Kit318357 (3545672)(1250404753, 5000-020-007) $160.90 NEW IN STOCK
SHIM .127 mm(.003 in.) thick8M7167 $6.29
SHIM .127 mm(.005 in.) thick8M7168 $6.29
SHIM .254 mm(.010 in.) thick8M7169 $6.29
Nozzle Ring 152451 (1P1252) $432.54
Turbine Housing181932(0R5412, 6N8453) $790.88
Compressor Cover155352(2P0984)$800.13
NOTESee 157982
ManufacturerBorg Warner - 3K - Schwitzer

See 157982

Applications

1976-06 Caterpillar Generation Set, Industrial with D339 Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
