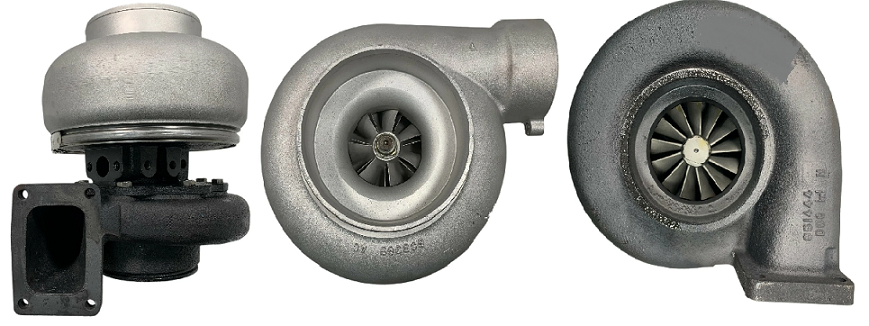

1977-05 Caterpillar Earth Moving 4HD-864 Turbo 184140

1977-05 Caterpillar Earth Moving 4HD-864 Turbo 184140
Item# turbo-earth-moving-cat-TC-184140
$2,935.20
Availability: Usually ships the next business day

Product Description


Part Number184140
OE number 7N7753, 7N-7753
Description Earth Moving
CHRA155351 (0R5870, 2O0985, 6N6528) $2140.93 NEW IN STOCK
Interchangeable CHRA 158104 (178012, 458104, 478012)(0R5884, 1N4363, 4N4566) $1,517.88
Turbo Model 4HD-864
Engine D349
machine Engine 3304, 3306
Industrial Engine D349, D348
Track-Type Loader5A, 5S, 153, 163, 4, D4E, D5B, 55
Serial No.57K1142-Up
FuelDiesel
Bearing Housing137568 (0R5399, 2S1309, 4N4042, 9M9929)(Oil Cooled) $528.14 NEW IN STOCK
Turbine Wheel181480 (159750)(0R5390, 7S7759, 159750, 0R5389, 2S1530, 9M9933)(Ind. 93.2 mm, Exd. 113. mm, Trm 16.85, 13 Blades) $507.25 NEW IN STOCK
Comp. Wheel155353 (2P0986)(Ind. 83.9 mm, Exd. 122. mm, Trm 9, 7+7 Blades, Superback) $496.22 NEW IN STOCK
Back plate139052 (1S3169, 2S1307) $18.42 NEW IN STOCK
Heat shield Number137570 (9M9938) $153.64 NEW IN STOCK
Repair Kit318357 (3545672)(1250404753, 5000-020-007) $160.90 NEW IN STOCK
SHIM .127 mm(.003 in.) thick8M7167 $6.29
SHIM .127 mm(.005 in.) thick8M7168 $6.29
SHIM .254 mm(.010 in.) thick8M7169 $6.29
Nozzle Ring152451 (1P1252) $432.54
Turbine Housing151444 (4N4043, 4N4571) $1348.92
Compressor Cover155352 (2P0984)
Gasket (turbine inlet)409038-0000 (132040, 52231083002) $17.21
Gasket oil inlet210018 (129120) $4.22
Gasket (oil outlet)210019 (129119) $4.40
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1977-05 Caterpillar Earth Moving with D349 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
