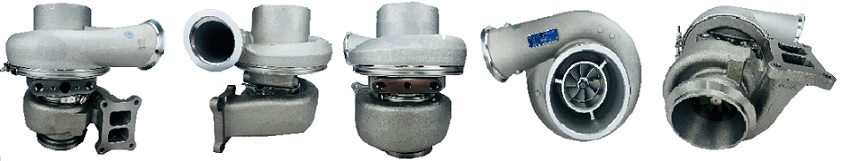

1995- Cummins Industrial HT60 Turbo 3536808

1995- Cummins Industrial HT60 Turbo 3536808
Item# turbo-industrial-cummins-TC-3536808
$1,665.70
Availability: Usually ships the next business day

Product Description


Part Number3536808
Previous Version3536806, 3536807
OE Number3804570, 380457000, 4033542, 4033542H
DescriptionIndustrial
CHRA4027438 (4027438H) $909.57
Turbo Model HT60, HT60-N0881A/X27K1
Engine 96N14
Engine Manufacturer Cummins
Bearing Housing 3537002 ()(Oil Cooled)(1900011016A) $165.24 NEW IN STOCK
Turbine Wheel3594953 (3536189, 3594952, 3526546)(Ind. 97. mm, Exd. 86.2 mm, Trm 17.14, 12 Blades)(1100030011, 1100016108) $175.00 NEW IN STOCK
Comp. Wheel3527047 (3519489)(Ind. 73.53 mm, Exd. 108.38 mm, Trm 9.22, 8+8 Blades, Superback)(1200030106) $72.00 NEW IN STOCK
Back plate, Seal plate 3759618 (3500710, 59618, 166084, 168084, 183472, 143144-0000)(1150704300, 1800016039) $18.43 NEW IN STOCK
Heat shield Number 3519155 (18373, 351915500)(2030016126) $15.58 NEW IN STOCK
Repair Kit3575230 (3545669)(1152304750, 1153060752, 5000020037) $73.60 NEW IN STOCK
Turbine HousingNA
Compressor CoverNA
Gasket (turbine inlet)210532 (Inox Steel) $12.00
Gasket (oil outlet)210018 (3519770, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket Kit 3800266 (215192) $21.21
ManufacturerHOLSET

Applications

1995- Cummins Industrial with 96N14 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
