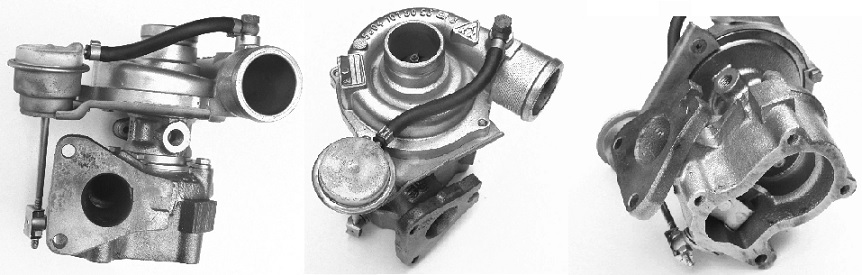

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1997-01 Citroen, Peugeot K03 Turbo 53039880028
Product Description
| Part Number | 53039880028 |
| Previous Version | 5303-988-0028, 5303 988 0028, 53039880010 |
| OE number | 9635220680, 0375C6, 037594, 9633647480, 0375C7, 284556 037594 |
| Year | 1997-01 |
| Description | Citroen XSARA, Peugeot 306 |
| Manufacturer Part Number | 53039700028, 5303-970-0028, 53039880010, 53039700010 |
| CHRA | 53037100505 (5303-710-0505)(1000030111) $295.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | K03, K03-1875EXA5.82KCAXD |
| Engine | XUD9TE ECO, XUD9TE DHV/DHY |
| Displacement | 1.91L, 1905 ccm |
| KW | 66/90 HP |
| RPM Max | 4350 |
| Fuel | Diesel |
| Angle a (compressor housing) | 271º |
| Angle ß (turbine housing) | 167º |
| Bearing housing | 53041500004 (53041500003, 53041500010, 53041500011, 53041500014, 53041510003)(Oil Cooled)(1900011013) $62.24 NEW IN STOCK |
| Turbine Wheel | 53031205014 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205014, 53031205017, 53031205023, 53031205025, 53031205027, 53031205029, 53031205037)(Ind. 45.03 mm, Exd. 37.82 mm, Trm 6.88, 11 Blades)((1302003438, 1100030062) $82.96 NEW IN STOCK |
| Comp. Wheel | 53031232007 (Ind. 33.68 mm, Exd. 44.95 mm, Trm 4.6, 4+4 Blades, Superback)(1302003407, 1200016159) $37.74 NEW IN STOCK |
| Back plate | 53041515703 (1302003303, 1300016046) $15.81 NEW IN STOCK |
| Heat Shield | 53031652000 ()(2030016011) $16.98 NEW IN STOCK |
| Repair Kit | 53037110000 (Single Feed)(1302003752, 5000040005) $63.60 NEW IN STOCK |
| Turbine Housing | 53031009061 |
| Compressor Cover | 53031015014 |
| Actuator | 58201104087 |
| Turbine Housing AR | 5 |
| Settings Waste gate (pressure) | 1.60 bar |
| Settings Waste gate (lifting rod) | 3.00 mm |
| Gasket (turbine inlet) | 210579 |
| Gasket (turbine outlet) | 210580 |
| Gasket (oil outlet) | 210317 $3.00 |
| td>Gasket Kit | (2090505211) $27.00 |
| Replaced By | 454176-0005 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Interchangeable with 454176-5006S
1997-01 Citroen Xsara 1.9L DT with XUD9TE DHV/DHY Engine 1997- Peugeot 306 1.9L DT with XUD9TE ECO Engine There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
