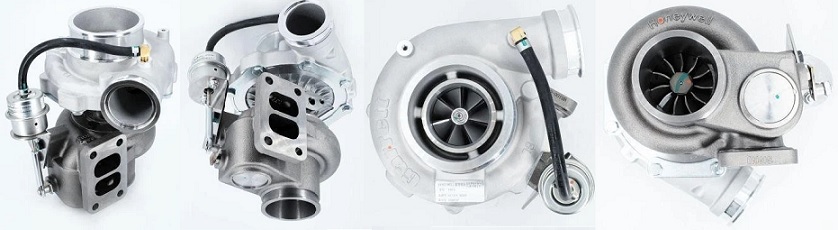

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2009- Cummins Truck HE351W Turbo 4047757
Product Description
| Part Number | 4047757 |
| Previous Version | 857478-0026, 857478-5026, 857478-5026S, 857478-5026Y, 8574780026, 8574785026, 8574785026S, 8574785026Y, 8C03-200-J41-0001, 8C03200J410001 |
| OE Number | 40010130, 4033002, 4033002H, 4047757, 4047758, 4956077, H4047757, H4047758, H2839319, H5452243 |
| Year | 2009- |
| Description | Truck (Class 3-8), YCM |
| Turbo Model | HE351W |
| CHRA | 857505-0006 (857505-5006S)(1000020193) $545.19 |
| Engine | ISBE5 |
| Emissions | EURO 3/4 |
| Engine Manufacturer | Cummins |
| Bearing Housing | 2834884 (Oil Cooled)(1900011016E) $94.03 |
| Turbine Wheel | 3595832 (Ind. 69.82 mm, Exd. 59.84 mm, Trm 10.9, 12 Blades)(1100016442) $145.19 |
| Comp. Wheel | 3599017 (Ind. 57.9 mm, Exd. 85.98 mm, Trm 5.7, 7+7 Blades, Superback)(120001618) $45.64 NEW IN STOCK |
| Back plate, Seal plate | 3530923 (3596448)(1800016009) $23.94 NEW IN STOCK |
| Heat shield Number | 3519302 (3519304)(2030016031) $14.98 NEW IN STOCK |
| Repair Kit | 4027448 (5000020042) $99.00 NEW IN STOCK |
| Turbine Housing | 2834639 |
| Compressor Cover | 4047764 |
| Actuator | 2834883 (2061010004) |
| Gasket (turbine inlet) | 210673 (Inox Steel) |
| Gasket (turbine outlet) | 3535001(Inox Steel) $13.98 |
| Gasket (oil outlet) | 210317 $3.00 |
| Gasket Kit | (2090505259) $27.00 |
| Gasket (turbine inlet) | 210673 (Inox Steel) |
| Gasket (oil outlet) | 210553 (Paper) |
| Gasket Kit | $25.23 |
| Manufacturer | Holset |
2009- Cummins Truck with ISBE5 Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
