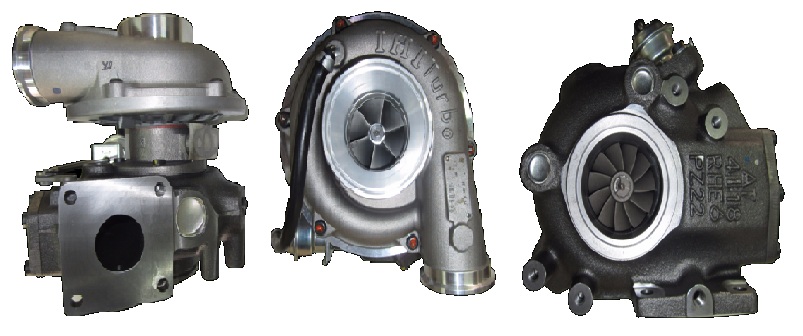

Yanmar Marine RHE62 Turbo VD18008 MYBHE

Yanmar Marine RHE62  Turbo   VD18008 MYBHE
Item# turbo-marine-yanmar-TC-VD18008
$3,490.20
Availability: Usually ships the next business day

Product Description


Part NumberVD18008
Previous versions VB18008, VC18008, VD18008
OE number11977518010, 119775-18010
IHI Short spec.MYBHE
DescriptionMarine
CHRAVAX10016 (E61CAD-S0033C, E61CADS0033C) $550.00 NEW IN STOCK, MADE IN USA
Turbo ModelRHE62-118003P22NWBRB584CCZ
Engine6LY-STE
Power350 HP
Displacement 4.2L, 4164 ccm, 6 Cylinders
FuelDiesel
Angle α (compressor housing)90
Angle β (turbine housing)65
Bearing HousingNH362709 (Oil Cooled) $203.92 NEW IN STOCK
Turbine WheelNH361206 (Ind. 64.2 mm, Exd. 69.5 mm, 11 Blades) $498.32 NEW IN STOCK
Comp. WheelNH364606 (Ind. 56.3 mm, Exd. 75.06 mm, 6+6 Blades, Superback) $149.00 NEW IN STOCK
Back plateNH362112 $144.14 NEW IN STOCK
Heat shield NumberNH365303 (NB137143, NN137055)(38T-013)(129403-18720) $12.25 NEW IN STOCK
Repair KitNH369801 (NH369802)(2445200) $129.00 NEW IN STOCK
BearingNH363001
Thrust bearingNH363051
Piston Ring (turbine side)NH261604 (070T-018) $12.88
Piston Ring (compressor side)NH261605 (070T-016, 115033-0000) $14.16
Turbine Housing (Water-Cooled) NH365418 $1906.50
Compressor CoverNH365419
Turbine Housing AR22
ActuatorNH961260 (NH961180) $539.64
Silencer119773-18850 $313.49
Plug23893-010002
Gasket (turbine inlet)119773-18250 $22.81
Gasket (turbine Outlet)128300-13230 $29.50
Gasket23414-100000
Gasket23414-080012
ManufacturerIHI

Applications

Yanmar Marine with 6LP-STE Engine

Core Charge

There is a $600.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
