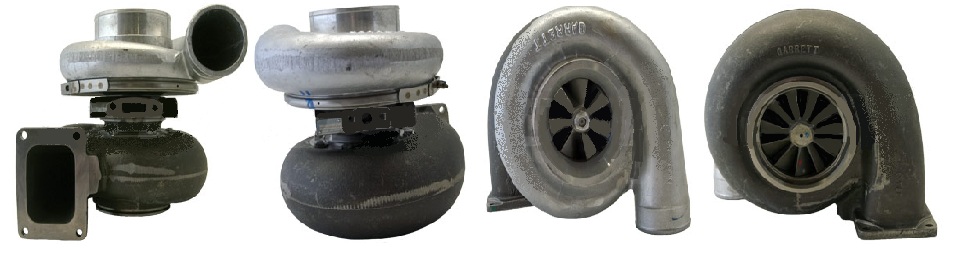

1999- Waukesha, Caterpillar Industrial UTL9406 Turbo 704837-0002

1999- Waukesha, Caterpillar Industrial UTL9406 Turbo 704837-0002
Item# turbo-industrial-waukesha-TC-704837-0002
$2,962.39
Availability: Usually ships the next business day

Product Description


Part Number704837-5002S
Previous versions704837-0002, 704837-0004
OE Number211896.0, 211896, 214007
DescriptionIndustrial Caterpillar CV Off Highway
CHRA452669-0006 (452669-5006, 452669-9006) $1115.00 NEW IN STOCK
Turbo ModelUTL9406
Engine ModelF3524GSI, L7044GSI, F3524, L7044GSI Engines Draw Thru, 7044
Fuel CNG (Compressed Natural Gas)
Bearing Housing451861-0002 (Water-Cooled) $528.24 NEW IN STOCK
Turbine Wheel451882-0004 (Ind. 129. mm, Exd. 111.6 mm, Trm 18.72, 11 Blades) $831.84 NEW IN STOCK
Comp. Wheel451883-0008 (Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.6, 7+7 Blades, Superback) $290.48 NEW IN STOCK
Back plate452668-0001 (408045-0057) $154.79 NEW IN STOCK
Repair Kit705731-0001 $189.00 NEW IN STOCK
Turbine Housing409688-0033 (1100181821) $1,550.95 NEW IN STOCK
Compressor Cover432078-0001 (432078-0004)(23503610) $583.50 NEW IN STOCK
Turbine Housing A/R2.0
Gasket (turbine inlet)409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) $14.02
Gasket oil inlet210161 (paper) $4.50
Gasket (oil outlet)210172 (Paper) $2.00
Gasket (water inlet and outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) $4.32
Listed $4,730.34
Replaced By701100-0009
ManufacturerHoneywell-Garrett, USA

Applications

1999- Waukesha, Caterpillar Industrial Engine F3524GSI

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
