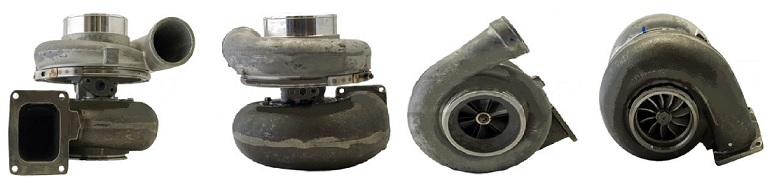

Waukesha Industrial T18A96 Turbo 465282-0006

Item# turbo-industrial-waukesha-TC-4652820006
$3,878.54
Availability: Usually ships the next business day

Product Description


Part Number465282-5006S
Previous Version465282-0006, 465282-6
OE number208350E
DescriptionIndustrial
CHRA409095-0011 (409095-5011S)(490400) $1580.28 NEW IN STOCK, MADE IN USA
Turbo ModelT18A96
EngineL5790 GSIE
Engine ManufacturerWaukesha
Displacement95000 ccm, V12 Cylinders
FuelDiesel
KW1272 HP
Angle α (compressor housing)0°
Angle β (turbine housing) 270°
Bearing Housing407214-0003 (490392)(3009196)(Oil Cooled) $274.86 NEW IN STOCK
Turbine Wheel408649-0003 (490394)(3011218)(1100181435) $289.00 NEW IN STOCK
Comp. Wheel408648-0006 (490394)(3026509)(Ind. 91.1 mm, Exd. 127. mm, Trm M, 6+6 Blades) $207.04 NEW IN STOCK
Back plate407215-0006 (4072156)(3004583) $204.50 NEW IN STOCK
Heat shield Number406687-0003 (490331) $247.62 NEW IN STOCK
Repair Kit468107-0000 (1100181750) $93.60 NEW IN STOCK
Turbine Housing407923-0034
Compressor Cover407513-0043
Turbine Housing AR1.32
Gasket (turbine Inlet) 409265-0000 (Inox Steel) $18.04
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 $8.22
ManufacturerHoneywell-Garrett

Applications

Waukesha Marine, Industrial with L5790 GSIE Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
