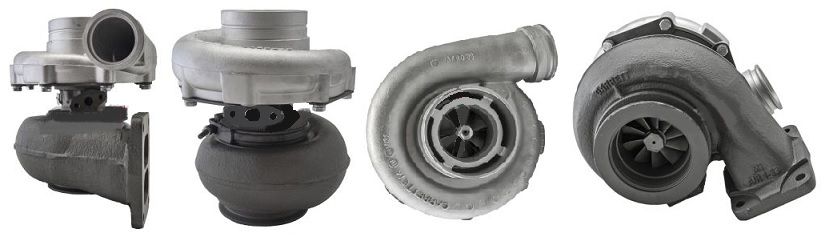

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1993- Volvo Truck, Bus GT4594 Turbo 452164-0003
Product Description
| Part Number | 452164-5003S |
| Previous Version | 452164-0003, 452164-3 |
| OE number | 425777 |
| Description | Truck, Bus |
| CHRA | 434251-0017 (434251-5017S)(1000010411) $450.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT4594 |
| Engine | D12A |
| Displacement | 12.0L, 12000 ccm, 6 Cylinders |
| Fuel | Diesel |
| Angle β (turbine housing) | 180° |
| Angle β (turbine housing) | 43° |
| Bearing Housing | 410310-0004 (410310-0001) $66.00 NEW IN STOCK |
| Turbine Wheel | 436005-0004 (449496-0003)(Ind. 86.99 mm, Exd. 77.72 mm, 10 Blades) $190.00 NEW IN STOCK |
| Comp. Wheel | 451193-0005 (Ind. 62.40 mm, Exd. 94.08 mm, 6+6 Blades) $86.70 NEW IN STOCK |
| Compressor back plate | 448890-0007 $44.00 NEW IN STOCK |
| Heat shield Number | 410366-0007 $16.42 NEW IN STOCK |
| Repair Kit | 709153-0002 $125.00 NEW IN STOCK |
| Turbine Housing | 449495-0019 |
| Compressor Cover | 449858-0010 |
| Turbine Housing AR | 1.33 |
| Gasket (turbine inlet) | 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20 |
| Gasket oil inlet | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38 |
| Gasket (oil outlet) | 210060 (311585, 2475013, 148062) (Paper) $4.48 |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 4049337 / 452164-5001S
1993- Volvo Truck, Bus with D12A Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
