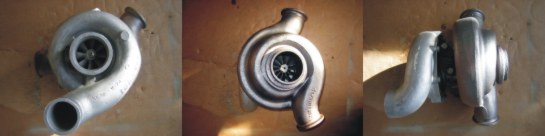

Caterpillar Machine, Industrial, Marine, Truck Engine TM5401 Turbo 466010-0006

Caterpillar Machine, Industrial, Marine, Truck Engine TM5401 Turbo 466010-0006
Item# turbo-tractor-tc-cat-4660100006
$1,450.00
Availability: Usually ships the next business day

Product Description


Part Number466010-5006S
Previous Part Number465734-0002, 466010-0006 466010-0003, 466010-0010, 466010-9006, 466010-6
OE number0R5462, 0R5488, 2W7470, 4W1134, 4W1136, 7W2875, 7W2877
DescriptionMachine, Industrial, Marine, Truck Engine, Earth Moving
CHRA446481-0001 (446481-5001S)(7W2878, 0R5491)(1000010285) $783.26 NEW IN STOCK
Turbo ModelTM5401
Prefix02Z, 03Z, 30A, 5CD, 5CD, 5YF, 9WC, 9WC, 2SJ, 1NK, 5WJ, 92X, 93X
Engine3208 DIT, 408-TRONHIGH
FuelDiesel
Cold PlanerPR-1000, PR-1000C
Machine Engine3208, 3412
Industrial Engine3208, 3412
Truck Engine 3208
S/N02Z40745-67071, 2Z13528-UP, 3Z3978-UP, 3Z4000-UP, 5XC00001-00137, 03Z00001-10092, 02Z00001-40744, 02Z40745-UP, 03Z10093-UP
Bearing Housing443133-0001 (7W2880)(Oil Cooled)(1900011219) $261.79 NEW IN STOCK
Turbine Wheel441514-0001 (2W3141)(Ind. 82. mm, Exd. 71.6 mm, 11 Blades)(1100016046) $198.51 NEW IN STOCK
Comp. Wheel441063-0003 (441792-0004)(2W3142, 9Y1242)(Ind. 91. mm, Exd. 61.2 mm, 8+8 Blades, Superback)(1200016312) $106.99 NEW IN STOCK
Back plate447035-0001 (1051973)(1300016088) $194.03 NEW IN STOCK
Heat shield Number410366-0007 (7C7058)(410366-0004, 410366-0003)(2030016005) $17.58 NEW IN STOCK
Repair Kit468132-0000 (3545829)(468262-0002)(1100045754, 5000010045B) $96.00 NEW IN STOCK
Turbine Housing441035-0003 (2W7298) $561.89
Compressor Cover441298-0032 (2W3139) $436.01
Turbine Housing AR1.75
O-Rings (oil outlet)8M5127, 5P7530
Gasket (oil inlet)9N5307 $3.66
ManufacturerHoneywell-Garrett

Applications

Caterpillar Machine, Industrial, Marine, Truck Engine with 3208, 3412 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
