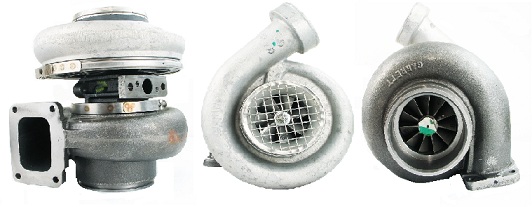

Detroit Diesel Industrial, Truck TV8511 Turbo 466570-0001

Detroit Diesel Industrial, Truck TV8511 Turbo 466570-0001
Item# turbo-industrial-detroit-TC-4665700001
$1,990.91
Availability: Usually ships the next business day

Product Description


Part Number466570-5001S
Previous Part Number466570-0001, 466570-9001, 466570-0002, 466570-1
OE Number4927027, 500393, 8927027, 91-28927027, 9128927027, R8927027
DescriptionTruck, Industrial
CHRA442032-0014 (442032-9014S, 1080052XR, 23501290) $1151.70 NEW IN STOCK
Turbo Model TV8511
Fuel Diesel
KW 475 HP
Engine8V92TAB
Displacement12.9L, 12061 ccm, V8 Cylinders
Angle α (compressor housing)67º
Angle β (turbine housing)42º
Bearing Housing 442028-0001 (8925742)(Oil Cooled) $244.16 NEW IN STOCK
Turbine Wheel442029-0017 (442029-0014, 183011-0000)(23501293, 8925762, 08925762) (Ind. 95.91 mm, Exd. 107.25 mm, 11 Blades)(1101083435) $484.07 NEW IN STOCK
Comp. Wheel441831-0001 (23501536) (Ind. 85.38 mm, Exd. 117.6 mm, Trm 56/55, 7+7 Blades, Superback) $165.46 NEW IN STOCK
Back plate442732-0001 (8928658) $143.45 NEW IN STOCK
Heat shield Number407657-0004 (409794-0000, 180121-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing443109-0003 (443109-0002)(23501533) $443.40
Compressor Cover442825-0002 (23501530) $367.51 NEW IN STOCK
Turbine Housing AR1.39
Gasket (turbine inlet)407294-0001 (310694, 303031063, 166618C, 8A0709, A58899, E5HN6N640AA, E7HZ6N640A, T30820, 312617) $13.84
Gasket oil inlet210023 (147837, 147837, 55739, 3519762, 3500681, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001, )(1900000037) $4.48
Gasket (oil outlet) 210021(148062, 311496, 3519807, 409037-0000, 413671-0000)(1900000027) $3.32
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Truck, Industrial 8V92TAB

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
