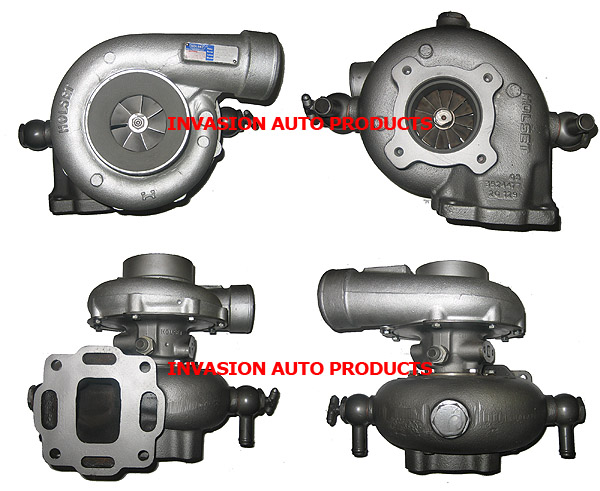

2001- Daewoo (D.H. I) Industrial Genset HX50M Turbo 3598550

2001- Daewoo (D.H. I) Industrial Genset HX50M Turbo 3598550
Item# turbo-industrial-daewoo-TC-3598550
$1,940.67
Availability: Usually ships the next business day

Product Description


Part Number3598550
Previous Part Number 3598551, 4033591, 4033591H
OE number65.09100-7077, 65091007077
DescriptionDoosan, Daewoo (D.H. I) Gas Gen Set
Manufacturer Part Number3598551
Turbo ModelHX50-E9841N/HA20S3, HX50, HX50M
CHRA4027842 (4027242) 400.00 NEW IN STOCK, MADE IN USA
Engine ModelGV222TIC, GE12TIC
S/N H020420302
FuelGas
Displacement11.0L, 11000 ccm
Engine ManufacturerDaewoo
Angle α (compressor housing)120°
Angle β (turbine housing)90°
Bearing housing3592695 (Water Cooled) $118.32 NEW IN STOCK
Turbine Wheel3528251 (3592697)(Ind. 85.95 mm, Exd. 72. mm, Trm 12.06, 12 Blades) $144.20 NEW IN STOCK
Comp. Wheel3593687 (4040737)(Ind. 61.39 mm, Exd. 99. mm, Trm 5.63, 7+7 Blades, Superback) $75.68 NEW IN STOCK
Back plate3528096 (1153055300, 1800016024) $23.55 NEW IN STOCK
Heat shield Number3529846 (3533038)(1153052340, 2030016003) $13.80 NEW IN STOCK
Repair Kit3545653 (3575015)(1152302750, 5000020017) $68.80 NEW IN STOCK
Turbine Housing (Water-Cooled) 3590062 (3526038) $1,632.36
Compressor Cover3598549
Gasket Kit3545769 (3545769H, 4032412, 4032426) $72.00
Gasket (turbine inlet)3921926 (2-485-073, 2485073, 3905033, 3916300, 3921926H, M3921926, GKT6203) $46.06
Gasket oil inlet3519762 $11.18
Gasket (oil outlet)3519805 $11.18
Gasket (oil outlet)3519806 $11.18
Gasket (oil outlet)3519807 (3765575, 351980700) $3.88
ManufacturerHOLSET
ConditionRebuilt

Applications

2001- Daewoo (D.H.I) Industrial Gen Set with GV222TIC, GE12TIC Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
