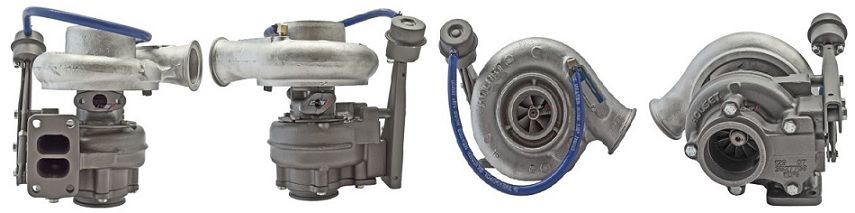

2002- Cummins Industrial Engine HX35W Turbo 3598897

2002- Cummins Industrial Engine HX35W Turbo 3598897
Item# TC-HX35W-3598897
$1,256.93
Availability: Usually ships the next business day

Product Description


Part Number3598897
Previous Part Number02-911520, 02/911520, 02911520, 2-911520, 2/911520, 2911520, 3596990, 3598897, 4033386, 4033386H, 4035037, 4035883, 4043888, 4048404
OE number4025327, 4025327NX, 4025327RX
DescriptionIndustrial Engine(KCEC) Diesel engines Wheeled Loader, Metso Dynapac Engine
CHRA4027436 (4027436H)(1153035903, 1000020142) $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-E7745L/E12PB11, HX35W
Year2002-
Engine Model 5.9L, 6B, 6BTAA , 6B5.9
Engine ManufacturerCummins B SERIES, Metso Dynapac Engine
Manufacturer Part Number4048404, 4035037, 3596990, 4035883, 4043888
Displacement5.9L, 5900 ccm
Fuel Diesel
Angle α (compressor housing)25/95/105/260/295/300º
Angle β (turbine housing)5/20/360º
Bearing Housing3532630 (3591575, 4027882, 4027729)(Oil cooled)(79.50 mm)(1900011016B) $79.78 NEW IN STOCK
Turbine Wheel3519336 (3595832)(Ind. 70. mm, Exd. 60. mm, Trm 11., 12 Blades) (1152301435, 1100030005) $155.42 NEW IN STOCK
Comp. Wheel3599650 (3599594) (Ind. 52. mm, Exd. 78. mm, Trm 5.15, 7+7 Blades, Superback)(1200016437) $49.00 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $23.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340, 2030016031) $14.95 NEW IN STOCK
Repair Kit3575169 (3580562, 4031746)(1153035750, 5000020021) $88.80 NEW IN STOCK
Turbine Housing 3532299 $149.06
Compressor Cover 3538783
Actuator4030275 (199268, 3528483, 3529856H, 4029701, 4029706, 4029707, 4029708, 4029709, 4029722, 4029738, 4029752, 4029963, 4030018, 4030024, 4030043, 4030046, 4030046H, 4030051, 4030051H, 4030061, 4030074, 4030074H, 4030091, 4030091H, 4030104, 4030105, 4030119, 4030120, 4030125, 4030132, 4030133, 4030138, 4030161, 4030166, 4030166H, 4030178, 4030180, 4030184, 4030205, 4030206, 4030207, 4030213, 4030226, 4030250, 4030257, 4030260, 4030292, 4030962, 4030969, 4030979, 4030984, 4030988, 4030989, 4032266, 4032267, 4032269) $149.33
Gasket Kit3545575 (1900100057) $23.79
Gasket (turbine inlet)409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) $13.52
Gasket (turbine outlet)210226 (2405066) (Stainless Steel) $29.00
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET

Applications

2002- Cummins Industrial Engine GBTAA

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
