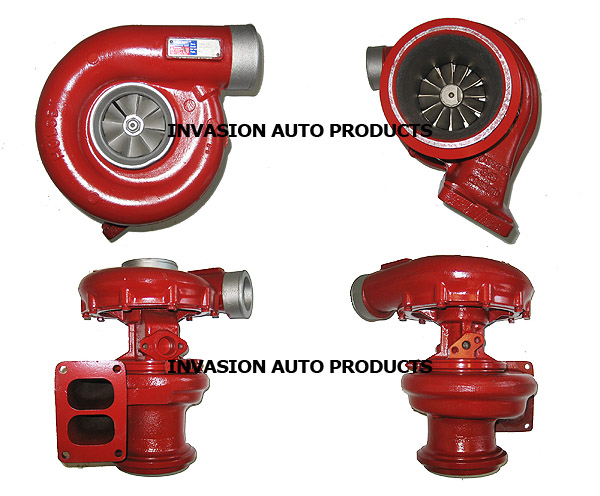

1988-02 Cummins Industrial Engine HC3-1 Turbo 3501176

1988-02 Cummins Industrial Engine HC3-1  Turbo 3501176
Item# turbo-industrial-cummins-TC-3501176
$1,871.43
Availability: Usually ships the next business day

Product Description


Part Number 3501176
Previous Version3521635, 3803122, 4035413
OE numberEUCU 3501176, 3521635, 3591961, 3803122, EUCU, 3501176, EUCU3501176
DescriptionIndustrial Engine Leyland DAF Cummins, Marathon, G1 & G2 Power Generations,
Turbo Model HC3-1
CHRA3501572 (350157200, 3501572H) $1064.77 NEW IN STOCK
Engine ModelKTA19-G2, KTA38-G2, NTA855-R1, NTE290, NTA855
Engine ManufacturerCummins
Fuel Diesel
KW290 HP
Displacement14.0L, 14000 ccm
Angle α (compressor housing)128/360º
Angle β (turbine housing)360º
Bearing Housing3500717 (350071700)(Oil Cooled) $420.84 NEW IN STOCK
Turbine Wheel3500433 (Ind. 96.52 mm, Exd. 86.41 mm, Trm T3)(186648)(1152303435) $834.69 NEW IN STOCK
Comp. Wheel3503456 $244.34 NEW IN STOCK
Back plate59618 (3759618)(3500710, 166084, 168084, 183472, 143144-0000)(1150704300) $18.43 NEW IN STOCK
Heat shield Number58538 (3758538) $62.38 NEW IN STOCK
Repair Kit3545661 (843424, 3575210, 318351, 354566100)(1150040750) $66.00 NEW IN STOCK
Turbine Housing 3501033
Compressor Cover 3500715
Gasket (turbine inlet)132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $15.49
Gasket (turbine outlet)210239 (Stainless Steel) $22.00
Gasket oil inlet 210019 (201049, 129119, 409266-0003, 3819900, 9737, 1S6595)(1900000035) $4.38
Gasket (oil outlet)210018 (3519763, 129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763, 157602, 3037537)(1900000025) $4.38
Gasket Kit3545577H $18.30
ManufacturerHolset
ConditionRebuilt

Applications

1988-02 Cummins Marathon with NTE 290 Engine

2002- Cummins G1 & G2 Power Generation Industrial with K19, NTA855, KTA19, KTA38, NTE 290, NTE 290 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
