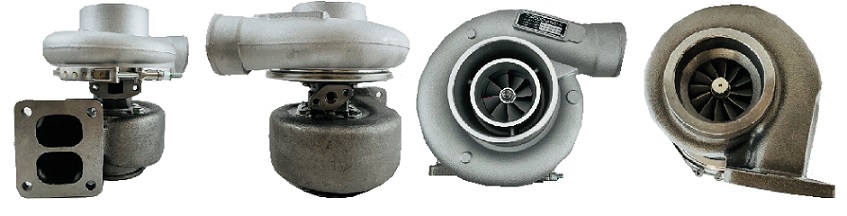

1986-03 Cummins Industrial H1E Turbo 3524034

1986-03  Cummins Industrial H1E Turbo   3524034
Item# TC-H1E-3524034
$795.00
Availability: Usually ships the next business day

Product Description


Part Number 3524034
Previous versions3524035, 3528777, 3528778, 3530716, 3535456, 3535457
OE number J919199, 3802303, 3910877, 3919201, 76191575
Description Industrial
Year1986-03
Turbo ModelH1E, H1E-8263AE/FA26CA11
CHRA3545701 (316469)(1000020154) $300.00 NEW IN STOCK, MADE IN USA
Engine Model6BT, 6CT, 6CTA
After-market For OE3524035
Engine6CTA, 8.3L
Displacement 5.9l, 5900 ccm
Fuel Diesel
Engine ManufacturerCummins
Angle α (compressor housing)345
Angle β (turbine housing)15
Bearing Housing 3500591 (3500592, 3530591, 3530592, 316519)(Oil Cooled)(1152301450, 1900011017) $57.00 NEW IN STOCK
Turbine Wheel3522880 (3592708, 314372)(Ind. 75.94 mm, Exd. 67.05 mm, 12 Blades)(1152301437, 1100030009) $94.00 NEW IN STOCK
Comp. Wheel3599637 (316518)(Ind. 54. mm, Exd. 81.58 mm, 8+8 Blades, Superback)(1200016158) $62.00 NEW IN STOCK
Back plate3522801 (167543) $26.20 NEW IN STOCK
Heat shield Number3519302 (167550)(2030016031) $14.00 NEW IN STOCK
Repair Kit4027309 (3802148, 3545652, 318393)(1152301750, 5000020014) $74.00 NEW IN STOCK
Turbine Housing3522747 $367.55
Compressor Cover3521693 $296.17
Gasket (turbine inlet)407294-0001 (310694) $13.84
Gasket (oil outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) $4.32
Gasket Kit 215181 $14.00
ManufacturerHOLSET

Applications

1986-03 Cummins Industrial 6CTA Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
