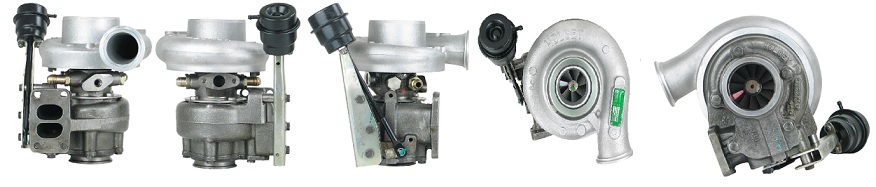

1997-02 Cummins Industrial Engine HX35G Turbo 3538702

Item# TC-HX35G-3538702
$1,529.50
Availability: Usually ships the next business day

Product Description


Part Number3538702
Previous Version3538703, 353870300, 3538703H
OE number3806253
DescriptionIndustrial Engine Bus, Coach
Manufacturer Part Number4025413, 3538703
CHRA3537811 (4027533, 4027532, 3537811H) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35G-D7735L/E12PB11, HX35G
Engine Model6BTAA
Engine ManufacturerCummins
Displacement 5.9L, 5900 ccm
KW195/230
FuelGas Engine
Engine ManufacturerCummins
Angle α (compressor housing)285°
Angle β (turbine housing)165º
Bearing Housing (Water Cooled) 3534487 (3536294, 4046247)(Water Cooled) $115.00 NEW IN STOCK
Turbine Wheel3519336 (3595832)(Ind. 70.05 mm, Exd. 60. mm, 12 Blades)(1152301435, 1100030005, 1100016180) $128.40 NEW IN STOCK
Comp. Wheel3599651 (3532312)(Ind. 50. mm, Exd. 78. mm, 7+7 Blades) $63.25 NEW IN STOCK
Back plate3530923 (1154351300) $21.48 NEW IN STOCK
Heat shield Number3519302 (3519304)(1152301340) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Turbine Housing 3536860 $394.56
ManufacturerHOLSET

Applications

1997-02 Cummins Industrial with 6BTAA Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
