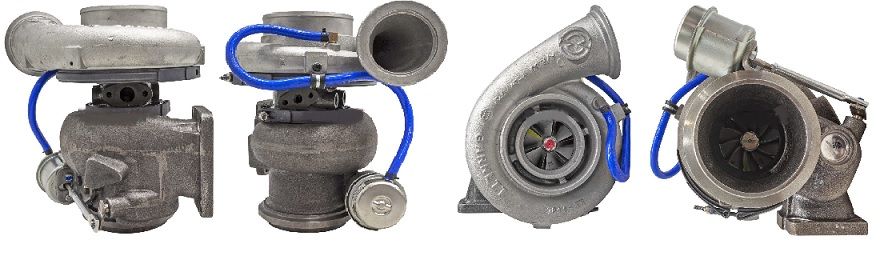

2002- DDC-MTU Industrial Engine GTA4294BNS Turbo 738163-0001

Item# turbo-industrial-ddcmtu-TC-738163-0001
$2,980.86
Availability: Usually ships the next business day
Currently Out of Stock. Call for information.

Product Description







Part Number738163-0001
OE Part NumberR23529051, 23529051, E23529051
Year2002-
DescriptionIndustrial Engine
Turbo ModelGTA4294BLNS
CHRA 712402-0030 (R23529061)
Displacement12.7L
KW316
Engine ModelS60
Engine ManufacturerDDC
Angle α (compressor housing) 340
Angle β (turbine housing) 270
Bearing Housing 720973-0001
Turbine Wheel 714470-0007 $689.61
Comp. Wheel 712340-0009 $314.53
Back plate 712339-0001 $127.00
Heat shield Number 410366-0007 $30.23
Turbine Housing 451911-0064
Compressor Cover 447844-0017
Gasket oil inlet 210019 (129119) $8.40
Gasket (oil outlet) 210060 (2475013) $4.48
Settings Waste gate (pressure) 30.5 psi +/- 1.0 psi
Settings Waste gate (lift shaft) 1.00 mm
Manufacturer Honeywell-Garrett


Applications

2002- DDC-MTU Industrial Engine



Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.



Warranty

This part comes with ONE YEAR unlimited mileage warranty.
