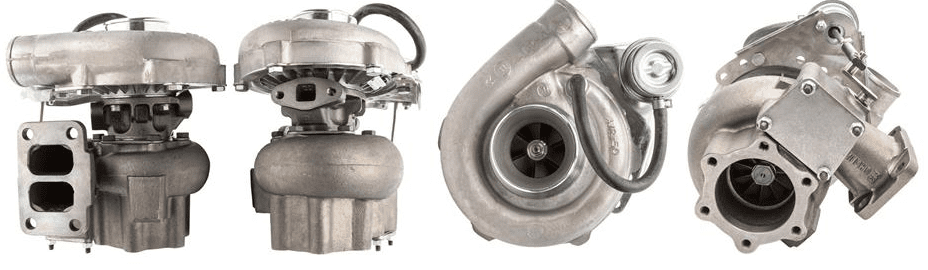

1991- Perkins Truck TBP401 Turbo 452024-0001

1991- Perkins Truck TBP401 Turbo 452024-0001
Item# turbo-truck-perkins-TC-4520245001S
$1,622.00
Availability: Usually ships the next business day

Product Description


Part Number 452024-5001S
Previous Version 452024-0001, 452024-0002, 452024-0004, 452024-0006, 452024-1
OE number 2674A128, 2674A129, 2674A131, 2674A087
Description Truck
CHRA447450-0037 (447450-5037S, , 441398-0008, 408105-0351, 703782-0027) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelTBP401
Engine 210TI
KW210
Bearing housing430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B, 103110005) $69.00 NEW IN STOCK
Turbine Wheel446905-0001 (407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 451309-0002)(20302)(Ind. 58.35 mm, Exd. 74.2 mm, Trm 9.36, 11 Blades)(20302, 1100040435, 1100030024, 101090023) $115.00 NEW IN STOCK
Comp. Wheel 442293-0006 (1810440C1)(Ind. 47.5 mm, Exd. 75. mm, Trm 10.3, 6+6 Blades, Superback) $43.50 NEW IN STOCK
Back plate408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(1300016006, 104080001) $20.87 NEW IN STOCK
Heat Shield409299-0001 (409299-0000)(106040003) $15.70 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(5000010031, 109030030) $69.50 NEW IN STOCK
Turbine Housing413889-0001
Compressor Cover409589-0239
Turbine Housing AR 0.70
Actuator432340-0015 $129.50
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52
Gasket (turbine outlet)409196-0001 (210226) $17.71
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037(Paper) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Manufacturer Honeywell-Garrett

Applications

1991- Perkins Truck with 210TI Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
