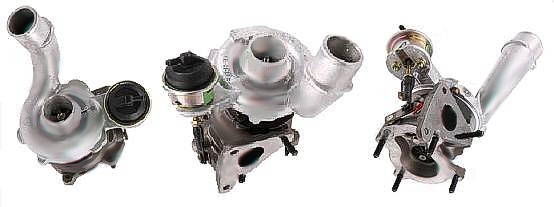

2000- Renault, Volvo GT1549S Turbo 751768-0004

2000- Renault, Volvo GT1549S Turbo 751768-0004
Item# turbo-commercial-nissan-TC-7517685004S
$1,487.00
Availability: Usually ships the next business day

Product Description


Part Number 751768-5004S
Previous Version 703245-0001, 703245-0002, 717345-0002, 751768-0001, 751768-0002, 751768-0003, 751768-5003S
OE number 8200091350A, 7701478022, 7711497500, 7711497142, 8200091350B, 8200046681, 8200046681A, 8200046681B, 8200091350A
Year 2000-
DescriptionMitsubishi Carisma Opel Movano Volvo V40 Nissan Primastar Renault Megane dCi / Trafic dCi
CHRA 433289-0345 (433289-5345S) $770.00
Turbo Model GT1549S
Engine F9Q
Engine Manufacturer Renault
Displacement 1.87L, 1900 ccm, 4 Cylinders
KW 57/72
RPM Max 4000
FuelDiesel
Angle α (compressor housing) N/D
Angle β (turbine housing) 75º
Bearing Housing 433275-0002 $69.68
Turbine Wheel434713-0015
Comp. Wheel436132-0014
Back plate700593-0003
Heatshield Number 434302-0001 $9.52
Repair Kit732136-0001 $66.80
Service Kit732248-0003 $29.20
Turbine Housing700866-0012
Compressor Cover 717347-0001
Turbine Housing AR0.35
Actuator433483-0005
Gasket (turbine inlet)210542
Gasket (turbine outlet)210353
Gasket (oil outlet)210243
Features Wastegate (pressure)1.0 - 4.0 mm
Wastegate adjustment (rising stem)0.120 bar
Manufacturer Honeywell-Garrett

Interchangeable with 53039880048, 53039700048

Applications

2001- Renault Clio II 1.9 dTi Engine F9Q

2001- Renault Kangoo I 1.9 dCi Engine F9Q

2001- Renault Master II 1.9 dCi Engine F9Q

2000- Renault Megane I 1.9 dTi Engine F9Q

2001- Renault Trafic II 1.9 dCi Engine F9Q

2001-04 Volvo- S40 I 1.9 D Engine F9Q

2001-04 Volvo- V40 1.9 D Engine F9Q
