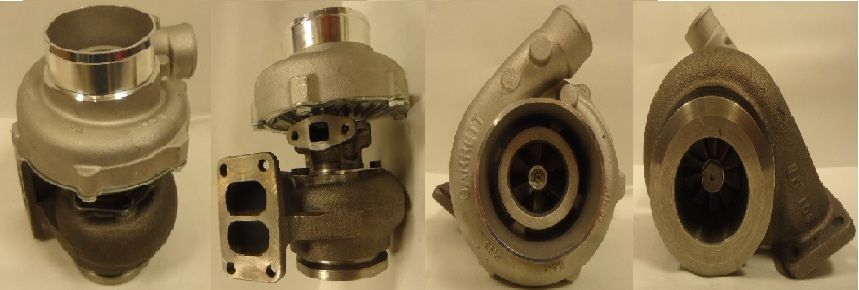

1993-02 Ford Agricultural Tractor P396 T04E Turbo 452076-0003

Item# turbo-agricultural-new-holland-TC-4520765003S
$1,165.00
Availability: Usually ships the next business day

Product Description


Part Number452076-5003S
Previous Version452076-0003, 452076-3
OE number F2NN6K682BB, F2NN6K682CB, 87840270
DescriptionAgricultural Tractor P396
CHRA447450-0043 (447450-5043S)(82851306) $450.00 NEW IN STOCK, MADE IN USA
Turbo ModelT04E36, M24
EngineL925, P465, P396
Displacement7.5L, 7500 ccm, 6 Cylinders
KW120/142/150/157/165/180/210
FuelDiesel
RPM Max2100/2500
Angle a (compressor housing) 78º
Angle ß (turbine housing)
Bearing Housing430027-0028 (407285-0059, 430027-0067)(Oil Cooled) $47.00 NEW IN STOCK
Turbine Wheel446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 74. mm, Exd. 64.61 mm, Trm 10.79, 11 Blades)(1100016090) $134.50 NEW IN STOCK
Comp. Wheel448048-0002 (Ind. 52.55 mm, Exd. 76.07 mm, Trm 47, 6+6 Blades, Billet) $144.90 NEW IN STOCK
Back plate408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040, 408045-0061)(1300016006) $20.87 NEW IN STOCK
Heat shield Number409299-0001 (311607, 409299-0000) $15.70 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) $69.50 NEW IN STOCK
Turbine Housing442372-0024
Compressor Cover434246-0001
Turbine Housing AR 1
Gasket (turbine inlet)409039-0000 (210022-0000) $13.52
Gasket (oil outlet)210021 (409037-0000, 413671-0000, 3519807, 311496)(1900000027)
ManufacturerHoneywell-Garrett

Applications

1993-02 Ford Agricultural Tractor P396 with CNH Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
