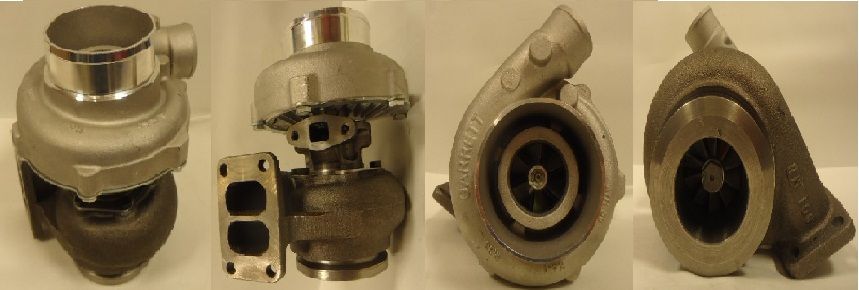

1993-01 New Holland Agricultural Tractor T04E36 Turbo 452076-0004

Item# turbo-agricultural-new-holland-TC-4520765004S
$1,165.00
Availability: Usually ships the next business day

Product Description


Part Number452076-5004S
Previous Version452076-0004, 452076-4
OE number87840271, F2NN6K682GA, F2NN6K682AB, F2NN6K682CA, 452076-0004, 452076-0004S
DescriptionAgricultural Tractor P396, Tractor 8970, P396
CHRA447450-0043 (447450-5043S)(82851306) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model T04E36, M24
EngineP396, CNH
Displacement7.5L, 7500 ccm, 6 Cylinders
KW120/243
FuelDiesel
RPM Max2500
Angle a (compressor housing) 0º
Angle ß (turbine housing) 78º
Bearing Housing430027-0028 (407285-0059, 430027-0067)(Oil Cooled) $47.00 NEW IN STOCK
Turbine Wheel446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 74. mm, Exd. 64.61 mm, Trm 10.79, 11 Blades)(1100016090) $134.50 NEW IN STOCK
Comp. Wheel448048-0002 (Ind. 52.55 mm, Exd. 76.07 mm, Trm 47, 6+6 Blades, Billet) $144.90 NEW IN STOCK
Back plate408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040, 408045-0061)(1300016006) $20.87 NEW IN STOCK
Heat shield Number409299-0001 (311607, 409299-0000) $15.70 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) $69.50 NEW IN STOCK
Turbine Housing442372-0025 $69.50
Compressor Cover434246-0001
Turbine Housing AR1.15
Gasket (turbine inlet)409039-0000 (210022-0000) $13.52
Gasket (oil outlet)210021 (409037-0000, 413671-0000, 3519807, 311496)(1900000027)
ManufacturerHoneywell-Garrett

Applications

1993-01 Ford New Holland TRACTOR 8970 With P396 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
