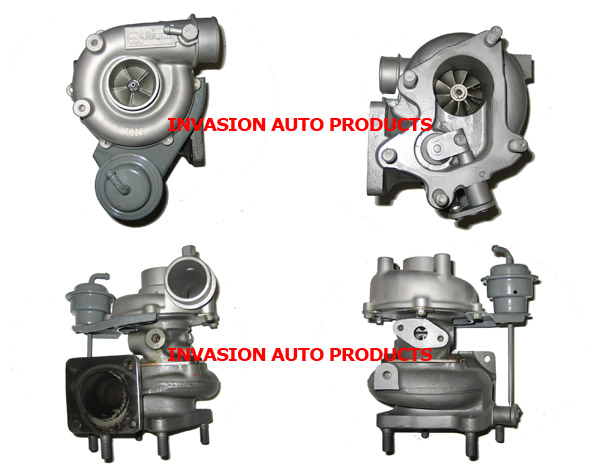

1991-92 Mazda, Ford RHB52K Turbo VB130022 VJ11

1991-92 Mazda, Ford RHB52K Turbo VB130022 VJ11
Item# turbo-car-mazda-TC-VJ11
$980.00
Availability: Usually ships the next business day

Product Description


Part NumberVB130022
Previous Version NB150028, VA130022, NN130049
OE Number5T-604, F220 B
Year1991-92
V-SPEC.VJ11, VJ5
DescriptionMazda MX6, 626, Ford Probe
CHRANE920031 (553T-531, NE920028, VA810023)(1000040129) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model RHB52KW-52002KP20NR5BRL3911EZ
EngineP148
Displacement2.2L, 2184 ccm
KW147 HP
Angle α (compressor housing) 0°
Angle β (turbine housing) 0º
Bearing HousingNN133360 (053T-520, NN133362, NN133378, VA810023)(Water Cooled)(1900011199, 1000040129) $82.50 NEW IN STOCK
Turbine WheelNN131502 (223T-515, NN131612, NN161312)(Ind. 52.47 mm, Exd. 43.05 mm, Trm 5.2, 9 Blades)(1100016018) $107.20 NEW IN STOCK
Comp. WheelNN136610 (39T-044)(Ind. 38.53 mm, Exd. 52.19 mm, Trm 4.7, 5+5 Blades, Flatback)(1200020268) $48.16 NEW IN STOCK
Back plateNN133021 (64T-002)(1800016033) $44.50 NEW IN STOCK
Heat shield NumberNN137055 (38T013)(2030016019) $12.25 NEW IN STOCK
Repair KitNN139921 (NN139922)(509T-530, 509T-545)(5000080115) $68.00 NEW IN STOCK
Turbine HousingNN139570
Compressor CoverNN133831
ActuatorNH978740 $115.00
Turbine Housing AR20.0
Settings Wastegate (pressure)0.896 bar
Settings Wastegate (lift shaft)2.00 mm
Gasket (turbine inlet)210276 (123901-18090, 2445051)(Inox Steel) $18.87
Gasket (turbine outlet)210858 (Stainless Steel)
Gasket (oil outlet)210636 (122833)(2445067)(Paper) $3.21
ManufacturerIHI
ConditionRebuilt

Applications

1991-92 Mazda MX6, 626 with P148 Engine

1991-92 Ford Probe 2.2L GT (ECP) Engine 2.2L, 12V

1986-87 MAZDA 626 Non-IC

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
