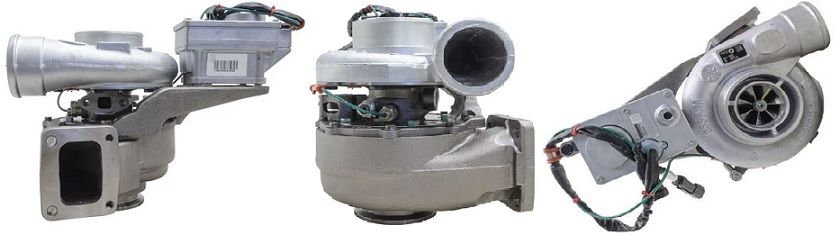

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)John Deere Skidder, Industrial S300BV126 Turbo 177307
Product Description
| Part Number | 177307 |
| Previous Version | 1370-970-0034, 13709700034, 176416, 178763, 478763 |
| OE Number | RE523285, RE534514, RE534563, SE502197, RE539713, SE502639, 478741 |
| Year | 2005- |
| Description | John Deere Skidder, Industrial, GenSet, 748HTJ Timberjack Cable and Grapple Skidder, 748H Grapple and 848H Grapple Skidders |
| Turbo Model | S300BV126, S300V126 |
| CHRA | 178721 (178721R, 478721) $693.86 NEW IN STOCK |
| Engine | 748H, 748HTJ, 848H, 6068HDW76, 6068HDW66, 6068HDW71, 6068HDW76, 6068H, 6068, 6068HF485 Powertech Plus Engine |
| Engine Manufacturer | John Deere |
| Displacement | 6.8L, 6800 ccm, 6 Cylinders |
| Fuel | Diesel |
| KW | 280 |
| Bearing Housing | 6743001 (Oil Cooled) NEW IN STOCK |
| Turbine Wheel | (Ind. 66.09 mm, Exd. 70.10 mm, 10 Blades) NEW IN STOCK |
| Comp. Wheel | 174713 (Ind. 79.63 mm, Exd. 127. mm, Trm 13.88, 7+7 Blades, Superback) NEW IN STOCK |
| Back plate | NEW IN STOCK |
| Heat shield Number | $13.53 NEW IN STOCK |
| Repair Kit | NEW IN STOCK |
| Electronic Actuator | 174774 (174787)(DZ108095, RE523318, 5900110743, 1RM100084, 59001107438, 59001107440)(12 Volts, SRA) $772.55 |
| Actuator 24V | RE---91 |
| Gasket (turbine inlet) | R519489 |
| Gasket (oil outlet) | R521158 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
2005- John Deere Skidder, Industrial with 6068H, 6068, 6068HF485 Powertech Plus Engine There is a $400.00 core charge which has been included in the price,
it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
