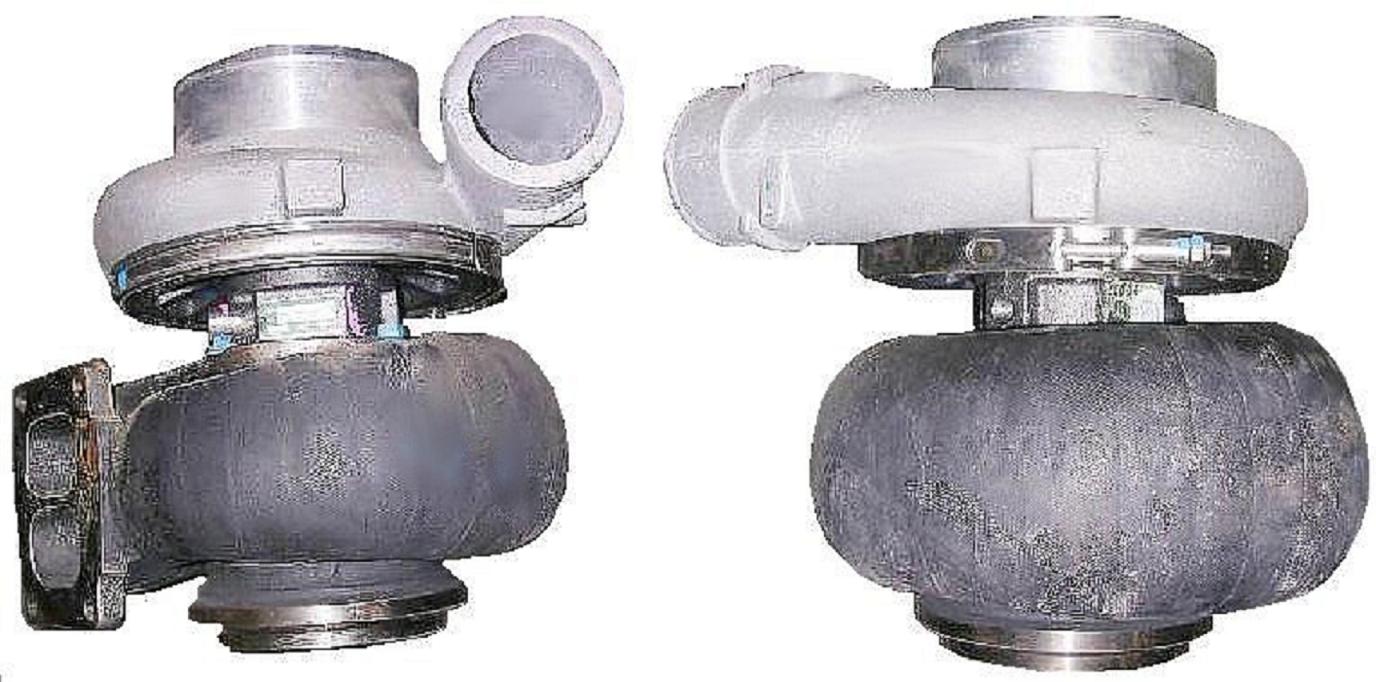

2011- John Deere Powertech, Marine Various TMF55 Turbo 705055-0002

2011- John Deere Powertech, Marine Various TMF55 Turbo 705055-0002
Item# turbo-various-john-deere-TC-7050550002
$1,907.99
Availability: Usually ships the next business day

Product Description


Part Number705055-5002S
Previous Part Number705055-0002, 705055-0001, 705055-2, 705055-1
OE numberRE503065, RE503189, RE503066, SE502246
DescriptionVarious, Marine
Manufacturer Part NumberN/A
CHRA444964-0007 (444964-5007S) $996.02 IN STOCK
Turbo ModelTMF55
EnginePowertech Series 6125, 6125AF001
Engine ManufacturerJohn Deere
Displacement 12.5L, 1250 ccm
Fuel Diesel
Bearing housing452663-0001 (Oil Cooled) NEW IN STOCK
Turbine Wheel447889-0001 (Ind. 82. mm, Exd. 104.4 mm, 9 Blades) $378.92 NEW IN STOCK
Comp. Wheel 447407-0006 (Ind. 102.4 mm, Exd 74.75 mm, Trm 53, 6 Blades) $160.06 NEW IN STOCK
Back plate449382-0005 $54.47 NEW IN STOCK
Heat Shield446864-0001 $19.47 NEW IN STOCK
Repair Kit468262-0002 (23514027) (1102045750) $98.16 NEW IN STOCK
Turbine Housing444686-0030
Compressor Cover449633-0024 (451374-0016)
Turbine Housing AR1.05
Gasket (turbine inlet) 409038-0000 (132040, 52231083002)(R105346) $17.21
Gasket (oil outlet)210060 (311585, 148062)(RE65198) $4.48
ManufacturerBorg Warner - 3K - Schwitzer

Applications

2011- John Deere Various, Marine Powertech Series 6125

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
