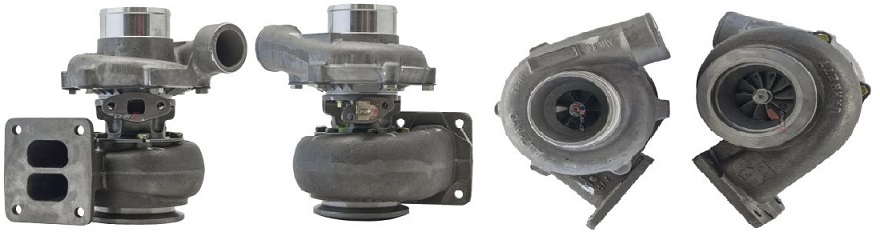

John Deere Agricultural T300-01 Turbo 466003-0001

Item# turbo-agricultural-john-deere-TC-4660030001
$1,117.23
Availability: Usually ships the next business day

Product Description


Part Number466003-5001S
Previous Version466003-0001 466003-0004 466003-0002 466003-0005
OE numberRE46185, RE46347, RE58710, RE58900, SE502217
DescriptionTractor M4 Agricultural Tractor, 540E/556A Skidder
CHRA446311-0002 (446311-5002S)(RE46348) $550.00 NEW IN STOCK, MADE IN USA
Turbo ModelT300-01
Engine4093T, 4045T (300 SERIES)
Engine ManufacturerJohn Deere
Displacement4.5L, 4500 ccm, 4 Cylinders
KW57
FuelDiesel
RPM Max2300
Angle α (compressor housing) 321°
Angle β (turbine housing)340°
Bearing Housing430027-0021 (407285-0019, 430027-0051)(AR63781)(Oil Cooled)(1900011104) $69.00 NEW IN STOCK
Turbine Wheel445812-0001 (E0NN6N678AA)(Ind. 54.5 mm, Exd. 61.5 mm, Trm 79, 10 Blades) $241.60 NEW IN STOCK
Comp. Wheel446340-0003 (E0NN6N662AA)(Ind. 41.75 mm, Exd. 63. mm, Trm 44, 6+6 Blades)(1200016561) $144.86 NEW IN STOCK
Back plate409629-0012 $58.39 NEW IN STOCK
Heat shield Number409627-0000 (409627-0001)(1100030340, 103121-0000) $14.80 NEW IN STOCK
Repair Kit468139-0000 (EFPN6K682AA)(1100030750, 5000010041)(Dynamic) $69.50 NEW IN STOCK
Turbine Housing446316-0014
Compressor Cover446341-0003
Housing AR 0.86
Gasket (turbine inlet)407294-0001 (310694, 303031063, 312617, 166618C, 8A0709, A58899, E5HN6N640AA, E7HZ6N640A, T30820) $13.84
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHoneywell-Garrett

Applications

John Deere Agricultural Tractor with 4093T Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
