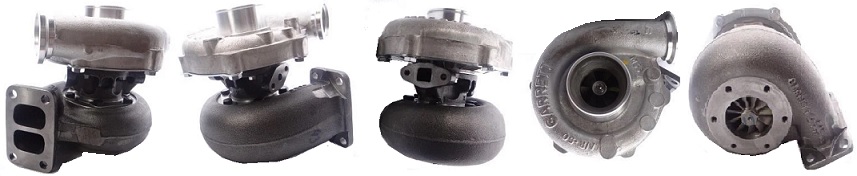

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1994- Iveco Truck T04E46 Turbo 465413-0004
Product Description
| Part Number | 465413-5004S |
| Previous Version | 465413-0004 |
| OE Number | 98474932, 500305014 |
| Description | Truck E15 Euro 1/2, Euro Cargo |
| CHRA | 447450-0037 (447450-5037S, 441398-0008, 408105-0351, 703782-0027) $300.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | T04E46 |
| Engine | 806045, 8060, 8060.105TCA - 8060.45.4200/5000, 8060.45.5000, 8060.45.4200 |
| Engine Manufacturer | Iveco |
| Displacement | 5500 ccm, 5.5L, 6 Cylinders |
| KW | 114/143/225 |
| RPM Max | 2700 |
| Angle α (compressor housing) | 205º |
| Angle β (turbine housing) | 115º |
| Bearing housing | 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B, 103110005) $69.00 NEW IN STOCK |
| Turbine Wheel | 446905-0001 (407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 451309-0002)(20302)(Ind. 58.35 mm, Exd. 74.2 mm, Trm 9.36, 11 Blades)(20302, 1100040435, 1100030024, 101090023) $115.00 NEW IN STOCK |
| Comp. Wheel | 442293-0006 (1810440C1)(Ind. 47.5 mm, Exd. 75. mm, Trm 10.3, 6+6 Blades, Superback) $43.50 NEW IN STOCK |
| Back plate | 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(1300016006, 104080001) $20.87 NEW IN STOCK |
| Heat Shield | 409299-0001 (409299-0000)(106040003) $15.70 NEW IN STOCK |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010031, 109030030) $69.50 NEW IN STOCK |
| Turbine Housing | 432752-0051 |
| Compressor Cover | 409589-0363 (432747-0004) |
| Turbine Housing AR | 1.15 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52 |
| Gasket (turbine outlet) | 409196-0001 (210226) $17.71 |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037(Paper) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 53279886717
1994- Iveco Truck Eurocargo E15 with 8060.105TCA - 8060.45.4200/5000 Engine There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
