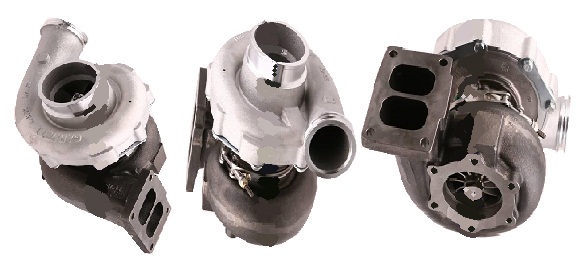

Part Number | 3530980 |
Previous Version | 3527887, 3591620, 3591621, 3591622, 3591623, 4032312 |
OE number | 4819761, 98414561, 98462947, 98488950, 98462946, 98462944 |
Description | Truck SPR-Range, 330.36 Truck, 190.36 Truck, 330.36 Bus, Euro Tech |
Manufacturer Part Number | 454003-0008, 454003-0002, 3530555, 3590005, 3528572 |
CHRA | 3545693 $998.40 NEW IN STOCK |
Turbo Model | H2D-9361AJ/S35B11, H2D |
Engine | 8210.22.212, 8210.42R.269, 8210.22.170, 8210.22.800, 8210.22 |
Engine Manufacturer | Iveco |
KW | 265/370 |
Displacement | 13.8L, 13798 ccm, 6 Cylinder |
Fuel | Diesel |
Angle α (compressor housing) | 34/47/57/125° |
Angle β (turbine housing) | 237/270° |
Bearing Housing | 3525199 $240.00 NEW IN STOCK |
Turbine Wheel | 3522773 (Ind. 86. mm, Exd. 77. mm, 11 Blades) (1152302436) $258.00 NEW IN STOCK |
Comp. Wheel | 3524997 (Ind. 64. mm, Exd. 94. mm, 7+7 Blades) $140.06 NEW IN STOCK |
Back plate | 62564 (3562564, 167543) (1253300300) $40.48 NEW IN STOCK |
Heat shield Number | 3529846 (3533038) (1153052340) $14.95 NEW IN STOCK |
Repair Kit | 3545653 (1152302750) $68.80 NEW IN STOCK |
Turbine Housing | 3531002 |
Compressor Cover | 3525009 |
Gasket (turbine inlet) | 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20 |
Gasket (turbine outlet) | 210239 (Stainless Steel) $22.00 |
Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
Gasket (oil inlet) | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48 |
Manufacturer | HOLSET |
1991- Iveco Truck 190.36 330.36 with 8210.22.212, 8210.42R.269, 8210.22.170, 8210.22.800, 8210.22 Engine 1991- Iveco Industrial with 8210.22.212, 8210.42R.269, 8210.22.170, 8210.22.800, 8210.22 Engine
There is a $250.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
