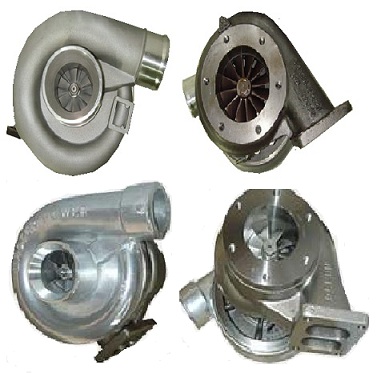

1974-01 Iveco, MAN Truck 4LGZ Turbo 52329883272

1974-01 Iveco, MAN Truck 4LGZ Turbo 52329883272
Item# turbo-truck-iveco-TC-52329883272
$2,982.31
Availability: Usually ships the next business day

Product Description


Part Number52329883272
Previous versions5232-988-3272, 5232 988 3272, 183500, 35336988
OE number 643582, 746265, 646452, 648.827, 51.09100-7087, 51091007087
DescriptionMAN Industrial Engine Iveco Truck Industrial MAN / PEGASO
Manufacturer Part Number 52329703272
CHRA52327100011 (5232-710-0011)(1000030008) $898.47 NEW IN STOCK
Turbo Model4LGZ-352C27.22
Engine96T, 9157, 96T, 9157/8, D2566MT
Engine Manufacturer Iveco
Displacement 11.41L, 11970 ccm
KW259/348/352/360
FuelDiesel
Angle α (compressor housing)10/17/20/352º
Angle β (turbine housing)10/15/25/217º
Bearing housing52321500007 (Oil Cooled)(1900011009) $277.74 NEW IN STOCK5
Turbine Wheel52321202125 (Ind. 86.5 mm, Exd. 96.5 mm, Trm 14.7, 12 Blades)(1100030003) $448.33 NEW IN STOCK
Comp. Wheel 52321232014 (Ind. 59.6 mm, Exd. 94. mm, 7+7 Blades, Superback)(1200016150) $121.57 NEW IN STOCK
Back plate52321523001 (1800016004) $33.16 NEW IN STOCK
Heat Shield52321652003 (2030016143) $23.89 NEW IN STOCK
Repair Kit52327110004 (3545039, 3545660, 354660)(1300704750, 5000020110) $119.69 NEW IN STOCK
Turbine Housing52321016526
Compressor Cover52321015036
Turbine Housing AR27
Gasket (turbine inlet) 409038-0001 (409038-0000, 132040, 202873, 205396, 9749, 1S4295, 3500683, 210017-0000, 210835-0000, 7M7273)(Inox Steel)(1900000003) $14.02
Gasket (turbine outlet)210222 (Stainless Steel) $18.50
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537) $4.22
Gasket Kit(2090505261)
Replaced by53369886451
ManufacturerBorg Warner - 3K - Schwitzer

Interchangeable with 4027787

Applications

1974-01 MAN 280/281/320/321/360/361 Industrial Engine with D2566MT Engine

1974-01 Iveco-Pegaso (Enasa) Truck, Special vehicle with 9157, 96T, 9157/8 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
