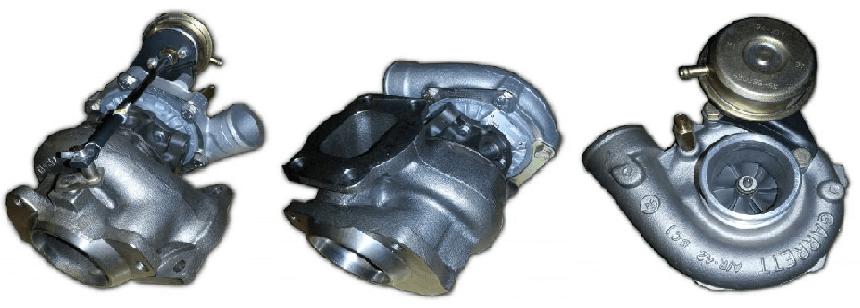

1990- Ford Sierra RS Cosworth TB0384 Turbo 465189-0003

1990- Ford  Sierra RS Cosworth TB0384 Turbo 465189-0003
Item# turbo-car-ford-TC-4651895003S
$1,880.00
Availability: Usually ships the next business day

Product Description


Part Number 465189-5003S
Previous Version 465189-0003, 465189-3
OE number 1639243, V86HF6K682AA, 1662811, V89HF6K682BA, 1662810, YB100103, V89HF6K682AA, V89HF6K682AB
Description Sierra RS Cosworth
CHRA409853-0079 (409853-5079S) $350.00 NEW IN STOCK, MADE IN USA
Turbo Model TB0384
Model TypeBFG, BFG4, BAG4/BBG4, BAG/BBG
Model Sierra Cosworth, Sierra Saphire Cosworth 4x4
Manufacturer FORD (Europe)
Engine N5B, N5C, N5D, 2.0Litre 16V Catalytic Converter Euro II
Displacement2.0L, 2000 ccm, 4 Cylinders, 16 Valves
KW220
Fuel Gas, Petrol, Gasoline
Angle α (compressor housing) 178°
Angle β (turbine housing) 320°
Bearing Housing430027-0025 (430027-0039)(Water Cooled) (1100030460) $55.20 NEW IN STOCK
Turbine Wheel451311-0014 (451311-0003)(Ind. 59.0 mm, Exd. 48.35 mm, Trm 67, 11 Blades)(1100030435) $169.60 NEW IN STOCK
Comp. Wheel409096-0013 (103015-0000)(Ind. 60. mm, Exd. 46.5 mm, Trm 60, 6+6 Blades)(1100030400) $45.40 NEW IN STOCK
Back plate409629-0001 (409629-0003, 409629-0006, 409629-0004)(1100030300) $38.00 NEW IN STOCK
Heat shield Number 409639-0000 (409627-0000)(103121-0000) $14.80 NEW IN STOCK
Repair Kit707897-0001 (1100030750)(Dynamic) $69.50 NEW IN STOCK
Turbine Housing413746-0002
Compressor Cover409589-0247 (413745-0001)
Actuator430099-0055
Turbine Housing AR 0.48
Settings Waste gate (lift shaft)0.58-0.65 Bar
Settings Waste gate (pressure) 1.00 mm
Gasket (turbine inlet)409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $9.99
Gasket oil inlet 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) (Paper) $4.48
Gasket (oil outlet)210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496) (1900000027) (Paper) $4.48
ManufacturerHoneywell-Garrett

Applications

1990- Ford Sierra RS Cosworth Engine 2.01 16V

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
