Home > Force Inductions > TURBO CHARGERS > VARIOUS > DOOSAN INFRACORE > 2007-02 Doosan Infracore Various HX40W Turbo 4046292

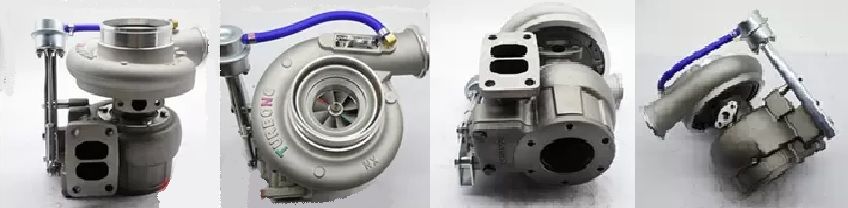

2007-02 Doosan Infracore Various HX40W Turbo 4046292

Item# turbo-various-doosan-TC-4046292
$1,790.20
Availability: Usually ships the next business day

Product Description


Part Number4046292
Previous Version4033140H, 4046292
OE Number65091007139, 65091007071, 65.09100-7139, 65091007139,65.09100-7154, 65.09100-7145, 65.09100-7140
Description Various
Manufacturer Part Number4045584, 4046293
Turbo Model HX40W
CHRA4030947 $495.40 NEW IN STOCK, MADE IN USA
Engine DL08
Engine Manufacturer Doosan, Daewoo (D.H. I)
Angle α (compressor housing260/270°
Angle β (turbine housing) 280°
Bearing Housing4027869 (3532632, 3599943) $89.00 NEW IN STOCK
Turbine Wheel3535359 (3522879, 3519892)(Ind. 75.92 mm, Exd. 64. mm, 12 Blades) $119.00 NEW IN STOCK
Comp. Wheel 4039432 (Ind. 55.95 mm, Exd. 85.98 mm, 7+7 Blades) $181.55 NEW IN STOCK
Back plate3596448 (1154351300)$33.48 NEW IN STOCK
Heat shield Number3519302 (1152301340) $24.95 NEW IN STOCK
Repair Kit4032051 $93.38 NEW IN STOCK
Actuator4030948
Gasket Kit3545575 $14.58
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52
Gasket (oil outlet)210060 (311585, 148062, 2475013)(Paper) $4.48
Gasket (turbine outlet)3535001 (3922789)(Inox Steel) $21.64
ManufacturerHolset

Applications

2007-02 Doosan Infracore Various with DL08 Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
