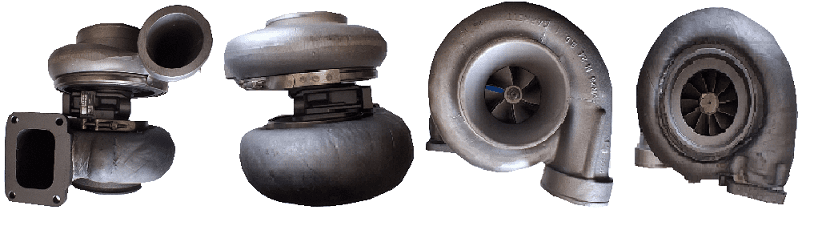

Detroit Diesel Industrial, Various TV7303 Turbo 466039-0001

Item# turbo-industrial-detroit-TC-4660390001
$3,986.66
Availability: Usually ships the next business day

Product Description


Part Number466039-5001S
Previous versions466039-9001S, 466039-0001, 466039-1
OE number23504622.0, 23513792, R23504622, R23513792, 23514798.0, R23514798
DescriptionIndustrial
Manufacturer Part Number466039-9001S
CHRA442032-0017 (442032-5017S)(23502109) $1,411.09
Turbo ModelTV7303
Engine12V149TIB
Displacement29302 ccm, V12 Cylinders
Type1189, 1197, 1248, 1256, 1296
Engine Manufacturer Detroit
KW1750
FuelDiesel
Bearing Housing442028-0001 (8925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel442029-0020 (23502111))(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel443120-0001 (Ind. 70.9 mm, Exd. 102.3 mm, Trm 48*54, 7+7 Blades)(23501285) $290.81 NEW IN STOCK
Back plate442027-0001 (8925746) $154.46 NEW IN STOCK
Heat shield Number407967-0000 (5149173) $66.98 NEW IN STOCK
Repair Kit468267-0007 (Major)(23514215)(468267-0006, 468267-0000)(1101678753) $91.60 NEW IN STOCK
Turbine Housing AR1.23
Gasket (turbine inlet)409038-0001 (7M7273, 132040, 210835-0000, 9749) $17.02
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
Replaced by466655-0001
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Industrial With 12V149TIB V12 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
