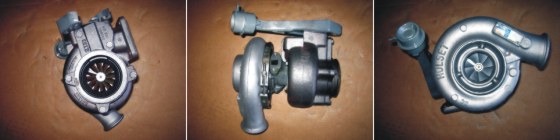

1989-00 Cummins Truck, Various WH1E Turbo 3530983

1989-00  Cummins Truck, Various WH1E Turbo  3530983
Item# turbo-various-cummins-TC-3530983
$1,259.05
Availability: Usually ships the next business day

Product Description


Part Number3530983
Previous Part Number3530991, 3528174
OE number 3802204
DescriptionOne Ton Truck, Various
Manufacturer Part Number3530900
CHRA3545416 $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelWH1E-8284AX/JB19KB8, WH1E
Engine Model 6CTAA
Engine 5.9L, 5900 ccm
KW 240/275 HP
Engine Manufacturer Cummins
Fuel Diesel
Angle α (compressor housing)200/340°
Angle β (turbine housing)20/360°
Bearing Housing 3530592 (3530591)(1152301450) $80.00 NEW IN STOCK
Turbine Wheel3522879 (3535359)(Ind. 76. mm, Exd. 64. mm, 12 Blades)(1152301436) $159.00 NEW IN STOCK
Comp. Wheel3599643 (Ind. 58. mm, Exd. 83. mm, 8+8 Blades) $55.00 NEW IN STOCK
Back plate3522801 $38.00 NEW IN STOCK
Heat shield Number3519302 (3519304)(1152301340) $14.95 NEW IN STOCK
Repair Kit4027309 (3545652)(1152301750) $74.00 NEW IN STOCK
Turbine Housing4030337/3598204
Compressor Cover3527983
Actuator4029706
Settings Waste gate (pressure)1.530 bar
Gasket (turbine inlet)407294-0001 (312617) $8.20
Gasket (oil outlet)210021 (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
ManufacturerHOLSET

Applications

1989-00 Cummins Various with 6CTAA Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
