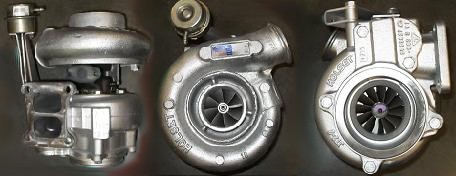

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1993- Cummins Bus, Commercial Vehicle HX40W Turbo 3533005
Product Description
| Part Number | 3533005 |
| Previous Version | 198480D, 3533006, 3533007, 3535870, 3535871, 3536915, 3536915H, 3537671, 3539264, 3802656, 3923913, 3923915, 3927349, 3927350 |
| OE number | 3802614, 380261400, 3802614NX, 3802614RX |
| Description | Transit Bus, Freightliner C Series |
| CHRA | 4027612 (4027849, 3535324, 3537821, 5451470, 302-00002)(1153040900, 302-00002, 1000020131) $330.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | HX40W-8284L/JBA19CC8, HX40W |
| Engine | 6CT, 1994 C Series |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 225° |
| Angle β (turbine housing) | 133° |
| Bearing Housing | 3532632 (3532631, 3539694, 3599943, 4027754, 4035136, 4036549, 4027872, 4027869)(Oil Cooled)(1153040450, 1900011016) $93.80NEW IN STOCK |
| Turbine Wheel | 3522879 (3519892, 3522879, 3535359)(Ind. 75.92 mm, Exd. 64. mm, Trm 10.4, 12 Blades)(1152301436, 1100030008) $130.05 NEW IN STOCK |
| Comp. Wheel | 3599592 (3599591)(3537168)(6743818050)(Ind. 58. mm, Exd. 82.04 mm, Trm 6.80, 8+8 Blades, Superback)(1153040400, 1200016067) $68.57 NEW IN STOCK |
| Back plate | 3530923 (1154351300, 1800016009) $33.48 NEW IN STOCK |
| Heat shield Number | 3519302 (194149)(1152301340, 2030016031) $24.95 NEW IN STOCK |
| Repair Kit | 3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK |
| Turbine Housing | 3534314 $345.68 |
| Compressor Cover | 3532423 $188.17 |
| Actuator | 4030000 (4030959) |
| Gasket (turbine inlet) | 407294-0001 (310694) $14.53 |
| Gasket (oil outlet) | 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) $3.84 |
| Gasket Kit | 215241 (2090505305) |
| Manufacturer | HOLSET |
1993- Cummins Commercial Transit Bus with C Series Engine 1993- Cummins Freightliner with 6CT Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
