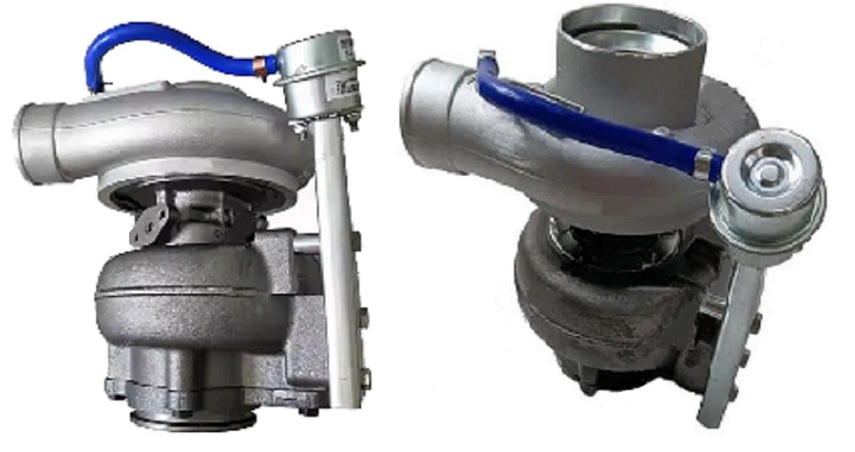

1995-09 Cummins Commercial Truck HX40W Turbo 3536056

Item# turbo-commercial-cummins-TC-3536056
$1,258.03
Availability: Usually ships the next business day

Product Description


Part Number3536056
Previous Part Number 3537292, 3537293, 3537294, 3539208, 3539311, 3594596
OE number 3535324
DescriptionCummins DSV Coach, Dennis Eagle, Commercial, Truck
CHRA4027612 (4027849, 3535324) $330.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX40W-L8284L/JB19KB8, HX40W
Engine 6BT, C Series
Engine ManufacturerCummins
KW245/280
Bearing Housing3532632 (4027872, 4027869) $99.00 NEW IN STOCK
Turbine Wheel3522879 (3535359)(Ind. 76. mm, Exd. 64. mm, 12 Blades)(1152301436) $159.00 NEW IN STOCK
Comp. Wheel3599592 (3599591)(3537168)(6743818050)(Ind. 58. mm, Exd. 81.3 mm, 8+8 Blades) $99.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519302 (194149) (1152301340) $24.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Turbine Housing4030595/3598210 $325.61
Compressor Cover3532423 $188.17
Settings Waste gate (pressure)1.600 bar
Settings Waste gate (lift shaft) N/A
Actuator 3531892 $190.12
Gasket (turbine inlet)407294-0001 (310694) $13.84
Gasket (oil outlet)210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) $ 3.84
ManufacturerHOLSET

Applications

1995-09 Cummins Commercial Euro 2 DSV Coach with 6BT, C Series Engine

1995-09 Cummins Trucks Dennis Eagle with 6BT, C Series Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
