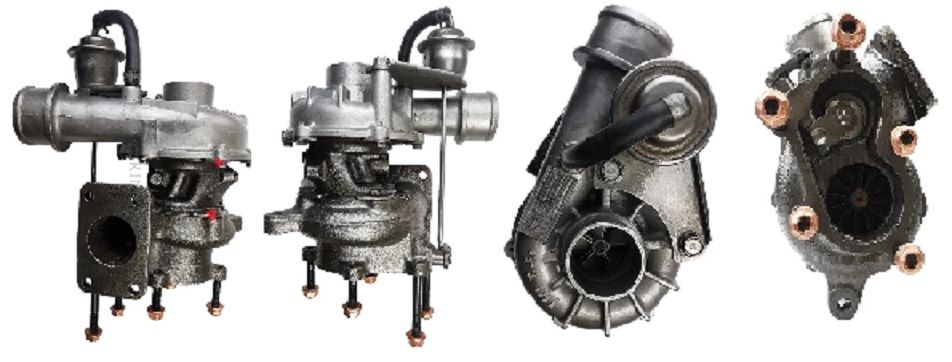

1995-01 Chrysler Voyager & grand Voyager RHB51P Turbo VB190014 VA63B

Item# turbo-car-chrysler-TC-VB190014
$1,489.00
Availability: Usually ships the next business day

Product Description


Part Number VB190014
Previous Part Number VA190014, VB190014, VC190014
OE number 35242068G, 35242068F
V-SPEC. VA63B, VA63A
Description Chrysler Voyager & grand Voyager
CHRAVA810044 (VC810051)(1000040160) $350.00 NEW IN STOCK
Turbo ModelRHB51P-70005PP12NHBRL3629CEZ
EngineENC
Displacement2.5L TD, 2500 ccm, 4 Cylinders
KW 116 HP
FuelDiesel
Angle α (compressor housing)290
Angle β (turbine housing) 15.5
Bearing HousingNN133391 (NN133397)(Oil Cooled)(1900011187B) $89.00 NEW IN STOCK
Turbine WheelNN131614 (Ind. 44. mm, Exd. 52.5 mm, Trm 7.16, 12 Blades)(1100016012) $96.06 NEW IN STOCK
Comp. Wheel NN136710 (Ind. 35.6 mm, Exd. 52.5 mm, 6+6 Blades, Superback)(1200016505) NEW IN STOCK
Back plate NN133021 (64T-002)(1800016033) $34.50 NEW IN STOCK
Heat shield Number NN137055 (38T-013)(2030016019) $12.25 NEW IN STOCK
Repair Kit NN139922 (509T-545)(5000080115) $68.00 NEW IN STOCK
Turbine HousingNN139644
Compressor CoverNN133923
Turbine Housing AR12
Actuator NH960761
Settings Wastegate ( pressure)1.695 bar
Settings Wastegate (lift shaft)2.00 mm
Gasket (turbine inlet) 210229 (Steel)
Gasket (turbine outlet)210276 (2445051, 123385)(Stainless Steel)
Gasket (oil outlet)210636 (2445067, Paper) $3.21
Gasket Kit(2090505206)
ManufacturerIHI

Applications

1995-01 Chrysler Voyager & grand Voyager Engine ENC

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
