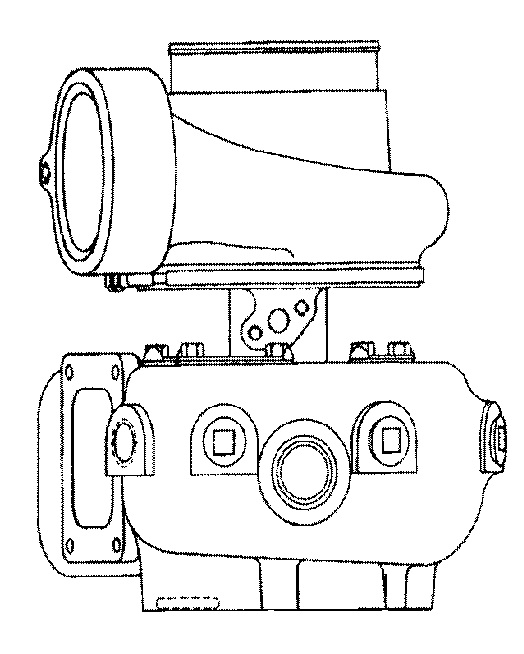

Caterpillar Industrial TW9211 Turbo 466612-0007

Caterpillar Industrial TW9211 Turbo 466612-0007
Item# turbo-industrial-caterpillar-TC-4666120007
$5,428.02
Availability: Usually ships the next business day

Product Description


Part Number466612-5007S
Previous versions466612-0007, 466612-9007, 466612-7
OE number122-8043, 1228043
DescriptionIndustrial Gen Set, Engines and Power Units, Earth Moving
CHRA410349-0034 (410349-5034S, 0R6801, 0R7165, 1004095) $1712.20 NEW $2242.01 NEW IN STOCK
Turbo ModelTW9214, TV9214. TW9211
Displacement27.0L, 27000 ccm, V12 Cylinders
FuelDiesel
Industrial Engine G3412
Chiller EngineG3412
S/N8LW00001-UP, 6ZM00001-UP
Bearing Housing443245-0001/410310-0002 (4W1224, 23504279) $463.52 NEW IN STOCK
Turbine Wheel442208-0001 (4W1223) $637.69 NEW IN STOCK
Comp. Wheel441813-0008/445035-0004/441813-0002 (9Y1493, 6I2104, 7W2298) $506.64 NEW IN STOCK
Back plate408487-0042 (1093481, 4W4609) $294.92 NEW IN STOCK
Heat shield Number410370-0005 (1900388, 4W1329) $184.05 NEW IN STOCK
Repair Kit707899-0001/468416-0000 (1101090750, 1101090755) (1N3593, 1089342) $92.40 NEW IN STOCK
Turbine Housing (Water Cooled)409339-0114 (409133-0114, 448406-0001)(9N2035, 7C6707, 6N7215, 90741, 4P4605) $1250.00 NEW IN STOCK
Compressor Cover443892-0009 (7W2299) $918.10
Turbine Housing AR1.05
Plug-Cup3B0645 $3.87
Plug-Cup4N0932 $5.96
Plug-Cup3P1896 $4.89
Plug-Cup1006816 $5.43
Gasket (turbine inlet)409038-0001 (7M7273) $13.20
Gasket (turbine outlet)210255
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003) $4.40
Gasket (oil outlet)210018 (409267-0002, 1S4810, 3519763, 3500682, 3709738, 9738, 9988, 201048, 129120)(1900000025) $4.22
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth Moving with 3412 SITASCAC GS Engine

Caterpillar Industrial Engine with G3512 Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
