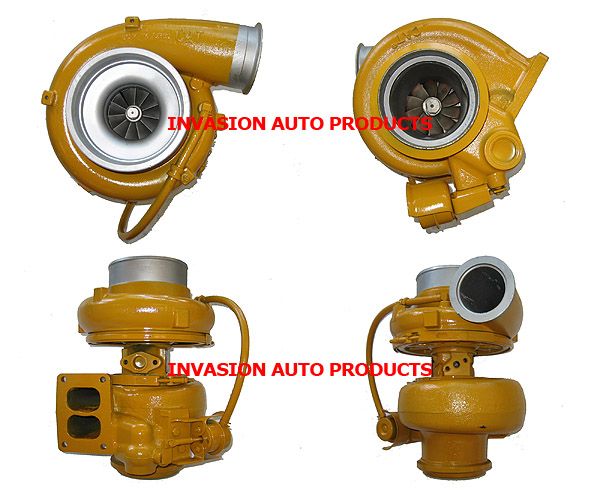

Caterpillar Industrial Engine GTA4702B Turbo 743001-0006

Item# turbo-industrial-caterpillar-TC-7430010006
$1,915.78
Availability: Usually ships the next business day

Product Description




Part Number 743001-5006S
Previous Part Number743001-0006, 743001-9006, 7430010006, 7430015006, 7430019006, 743001-6
OE Number20R-2921, 20R2921, 316-8258, 3168258, 362-0856, 3620856
Description Machine Engine, Articulated Dump Truck, 735/740 Articulated Truck
CHRA 712371-0111 (712371-5111S, 712371-0203)(262-6757, 10R4623) $1195.00 NEW IN STOCK
Turbo ModelGTA4702B, GTA4702BS
Engine Manufacturer Caterpillar
Articulated Dump Truck735, 740, 740
Machine EngineC15
S/NTXG1-UP, LHX1-UP, B1N00001-UP, B1P00001-UP, B1R00001-UP, WWC00001-UP
Angle α (compressor housing) 70º
Angle β (turbine housing)
Bearing Housing706666-0004 (Oil Cooled) $167.67 NEW IN STOCK
Turbine Wheel702892-0001 (Ind. 84. mm, Exd. 93. mm, Trm 67, 10 Blades, Boreless) $497.45 NEW IN STOCK
Comp. Wheel724170-0003 (724170-0006)(Ind. 60.92 mm, Exd. 91.43 mm, Trm 10.66, 6+6 Blades) $185.42 NEW IN STOCK
Back plate706669-0018 NEW IN STOCK
Heat shield701585-0001 $18.77 NEW IN STOCK
Repair Kit468267-0011 (1102050750) $180.98 NEW IN STOCK
Turbine Housing740979-0010 (740973-0002, 740979-0001, 740979-0004, 740979-0006, 740979-0008, 740979-0009, 740976-0002)
Compressor Cover447992-0071 (704569-0095)(243-3766) $602.73
Actuator452603-0052 $118.02
NOTEPartially restricted, LOW HP
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial Engine C15

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
