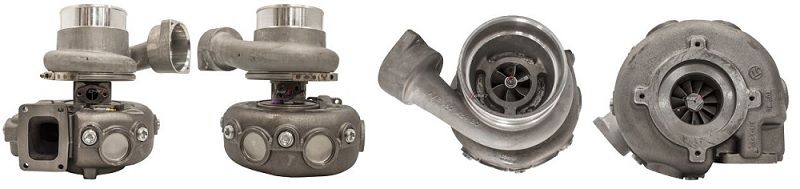

Caterpillar Marine, Generator Set, Earth Moving TW7204 Turbo 466664-0001

Caterpillar Marine, Generator Set, Earth Moving TW7204 Turbo 466664-0001
Item# turbo-earth-moving-cat-TC-4666640001
$2,949.41
Availability: Usually ships the next business day

Product Description


Part Number466664-5001S
Previous Version 466664-0001, 466664-1, 466664-0003, 466664-5003S
OE number 7C-3821, 7C3821, 114-9021, 1149021, 10R8256, 1149021
DescriptionMarine, Generator Set, Earth Moving
CHRA408774-0029 (408774-5029S)(7C3824, 0R6361)(1101072700) $1391.54
Turbo ModelTW7204, TV7204
FuelDiesel
Displacement34.5L, 34500 ccm, 8V Cylinders
Generator Set Engine 3508, G3516
GeneratorSR4
Industrial EngineG3516, SR4, 3508
Marine Engine3508
S/N70Z588-UP, 69Z301-878, 68Z694-1092, CTL1-UP, ZAZ1-UP
NSN2950-01-416-0583
Bearing housing408495-0028 (408495-0010, 160025-0000)(9N2035)(Oil Cooled)(1101672450) $126.83 NEW IN STOCK
Turbine Wheel408492-0004 (2W4131)(11 Blades)(1101672435) $322.37 NEW IN STOCK
Comp. Wheel 441553-0015 (Ind. 67.86 mm, Exd. 97.86 mm, Trm 8.12, 6+6 Blades) $213.88 NEW IN STOCK
Back plate408487-0026 (180044-0000)(2W4130)(1101670360) $282.71 NEW IN STOCK
Heat Shield409794-0000 (407657-0004, 180121-0000, 180021-0000) (9N2037, 9N3701) (1101680340) $90.68 NEW IN STOCK
Repair Kit468103-0000 (468173-0000, 312325, 188400-0000)(3545824, 2W0715)(1101280750) $97.20 NEW IN STOCK
Turbine Housing (Water Cooled)409133-0171 (409133-0173, 447209-0045)(4W7636) $1660.01
Compressor Cover447209-0045 (7C3825)
Turbine Housing AR1.03
Gasket (turbine inlet)409038-0001 (132040, 7M7273)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.38
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Caterpillar Marine, Generator Set, Earth Moving 3508 DITAJWAC

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
