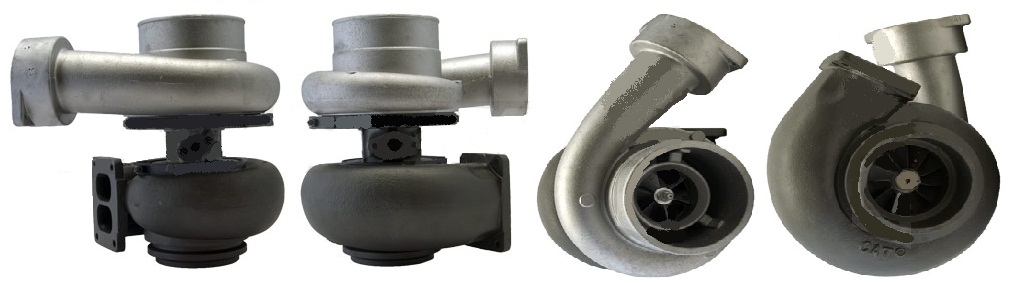

1980-13 Caterpillar Truck, Earth Moving TV7504 Turbo 466191-0002

1980-13 Caterpillar Truck, Earth Moving TV7504 Turbo 466191-0002
Item# turbo-truck-cat-TC-4661910002
$1,965.51
Availability: Usually ships the next business day

Product Description


Part Number466191-9002S
Previous Part Number 466191-9002, 466191-0002, 466191-2
OE number 0R6168, 4P-2062, 4P2062
DescriptionTruck, Earth Moving
CHRA447359-0001 (447359-5001S, 449530-9011S, 0R6915, 1155862, 4P2063, 0R6173) $550.00 NEW IN STOCK, MADE IN USA
Turbo ModelTV7504
Prefix2EK, 3ZJ, 4CK, 5EK, 6TS
Engine3406B, 3406 DITAAAAC, 495 TRONHIGH, 3406C, 3406E
Truck Engine 3406B; 3406C, 3406B ATAAC
KW294/400
Fuel Diesel
Bearing Housing447162-0001 (119-6004, 4P3821)(Oil Cooled) $148.54 NEW IN STOCK
Turbine Wheel 447386-0001 (4P3823)(Ind. 98.88 mm, Exd. 87.5 mm, Trm 15.24, 11 Blades) $226.03 NEW IN STOCK
Comp. Wheel447033-0003 (441829-0002)(4P3815, 103-0648)(Ind. 76.6 mm, Exd. 102.31 mm, Trm 17.1, 6+6 Blades, Superback) $92.80 NEW IN STOCK
Back plate 447241-0001 (4P3820) $40.87 NEW IN STOCK
Heat shield Number407967-0002 (4P3822) $28.60 NEW IN STOCK
Repair Kit468267-0010 (468267-0009, 711494-0001, 468267-0000)(23514215)(176-4259, 125-5375)(1101085750) $93.00 NEW IN STOCK
Turbine Housing446464-0019 (4P3812) $1,158.32 NEW IN STOCK
Compressor Cover447496-0001
Turbine Housing AR1.60 A/R
Gasket(oil outlet)210018 (201048, 129120, 3519763, 3500682, 3709738, 9738, 9988, 1S4810, 409267-0002)(1900000025) $4.22
ManufacturerHoneywell-Garrett
ConditionRebuilt

Applications

1980-13 Caterpillar Truck, Earth Moving with 3406B, C Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
