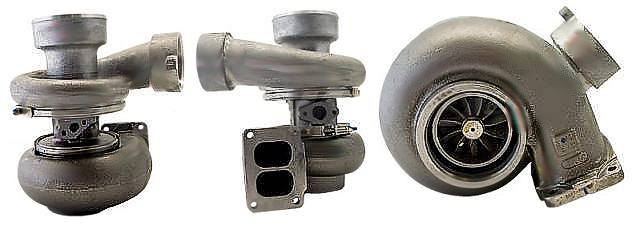

Caterpillar Earth Moving TV6135 Turbo 465984-0007

Caterpillar Earth Moving TV6135 Turbo 465984-0007
Item# turbo-earth-moving-cat-TC-4659840007
$1,856.25
Availability: Usually ships the next business day

Product Description


Part Number 465984-5007S
Previous Version 465984-0007, 465984-7
OE number 2W3214, 2W-3214
Description Earth Moving
CHRA409043-0050 (409043-S050S, 409043-0006)(1W6865, 0R5869, 6N6612) $989.92 NEW IN STOCK, MADE IN USA
Turbo Model TV6135
Engine 3306, 3306 DITAJWAC RM4410
Fuel Diesel
Machine Engine3306
Industrial Engine3306; 3306B
Serial NO.64Z1724 TO 64Z3328 Inclusive, 7JB1-1040
Bearing Housing408495-0028 (9N2035)(Oil Cooled) $152.10 NEW IN STOCK
Turbine Wheel408493-0007 (6N6611)(408493-0016)(Ind. 77.76 mm, Exd. 55.3 mm, Trm 13.5, 11 Blades) $414.10 NEW IN STOCK
Comp. Wheel409318-0008 (408495-0028, 408455-0033)(9N2035)(Ind. 59.72 mm, Exd. 86.4 mm, 8+8 Blades, Superback $265.12 NEW IN STOCK
Back plate408487-0016 (6N8630)(409368-0001, 408487-0003) NEW IN STOCK
Heat shield Number407778-0001 (9S9327) $101.72 NEW IN STOCK
Repair Kit468103-0000 (3545836)(Major) $97.20 NEW IN STOCK
Turbine Housing408142-0026 (6N6614)
Compressor Cover409603-0002 (407009-0147)(1W6866) $195.00
Turbine Housing AR1.34
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 7M7273, 210017-0000, 132040, 3500683, 205396, 202873, 1S4295, 409038-0000)(1900000003) $14.02
Gasket oil inlet210019 (129119) $4.40
Gasket (oil outlet)210018 (129120) $4.22
Gasket Kit215082
Replaced By 465984-0003
Manufacturer Honeywell-Garrett

Applications

Caterpillar Earth Moving with 3306 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
