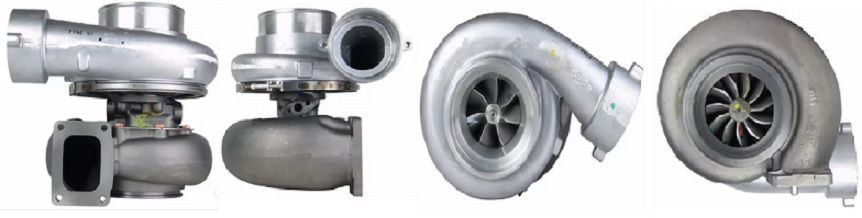

Caterpillar Earth Moving TV8106 Turbo 465048-0009

Item# turbo-earth-moving-cat-TC-4650480009
$2,981.35
Availability: Usually ships the next business day

Product Description


Part Number465048-5009S
Previous versions465048-0008, 465048-0009, 465048-9009, 465048-9
OE number1W6551, 0R6366, 1W6552, 1W6552
Description Earth Moving
CHRA408742-0006 (408742-5006S, 408742-0020, 408742-0029, 408742-0076, 408742-9006, 0R5867, 6N8654, 6N7960, 0R5910, 1W1653, 1W6809) $650.00 NEW IN STOCK, MADE IN USA
Turbo Model TV8106
Equip. 174414
Engine 3512 DITA RH Low Speed
Generator Set Engine3508, 3512, 3516, SR4
Generator SR4
Industrial EngineSR4, 3508, 3512
FuelDiesel
Serial No.67Z496-UP, 67Z535-UP, 25Z1974-2188, 95Y644-997
Bearing Housing408495-0028 (408495-0009, 408495-0010)(Oil Cooled)(0R5404, 160025, 9N2035)(1101672450) $106.83 NEW IN STOCK
Turbine Wheel408492-0021 (408492-0014, 408492-0017, 408492-0028)(9N2043)(Ind. 111.4 mm, Exd. 97.1 mm, Trm 15.97, 11 Blades)(1101081435, 1100020188) $290.30 NEW IN STOCK
Comp. Wheel409132-0001 (409132-0007, 444827-0001, 444827-0016)(6N7961, 7C9622, 4P3429, 33164091321)(Ind. 76. mm, Exd. 108. mm, Trm 8.15, 6+6 Blades, Superback)(1101881401, 1200016130) $108.00 NEW IN STOCK
Back plate408487-0013 (6N7962, 331640848713)(1101680360, 1300016142) $145.20 NEW IN STOCK
Heat shield Number407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340, 2030016145) $22.00 NEW IN STOCK
Repair Kit468211-0000 (3545836, 188002-0000, 3545824)(7A0636, 23513074, 3316468211)(5000010008) $97.20 NEW IN STOCK
Turbine Housing408499-0045 (1W6553) $689.36
Compressor Cover447209-0001 (6N7959) $369.84
Turbine Housing AR1.39
Gasket (turbine Inlet) 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket oil inlet210019 (201049, 129119, 409266-0003, 3819900, 9737, 1S6595)(1900000035) $4.38
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 $8.22
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth Moving with 3512 DITA RH Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
