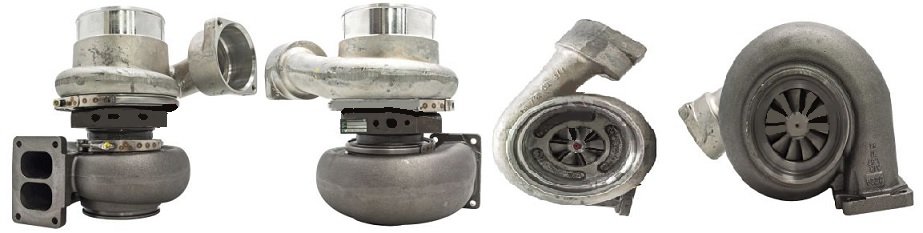

Caterpillar 245 Earth Moving TL8112 Turbo 465338-0008

Caterpillar 245 Earth Moving TL8112 Turbo 465338-0008
Item# turbo-earth-moving-cat-TC-4653380008
$26,998.26
Availability: Usually ships the next business day

Product Description


Part Number465338-5008S
Previous Part Number465338-0008, 465338-8, , 465338-0013
OE number0R5746, 1W2583, 4P1432, 1W-2583
DescriptionEarth Moving
CHRA447112-0002 (447112-5002S, 409844-0001)(0R5921, 8N9685) $1,346.86 IN STOCK
Turbo ModelTL8112
Engine3406T DITAJWAC INDUSTRIAL
Fuel Diesel
Displacement14600 ccm, 6 Cylinders
Machine Engine3406
Excavator245
Engine Serial No.70V12220-Up
Bearing Housing 447159-0001 (0R5775, 7E9493, 7N8188)(Water Cooled) $734.31 NEW IN STOCK
Turbine Wheel408492-0022 (6N4606, 101081436)(408492-0012, 408492-0016, 408492-0023)(Ind. 111.4 mm, Exd. 87.73 mm, Trm 13.97, 11 Blades) $209.00 NEW IN STOCK
Comp. Wheel409132-0003 (409132-0004)(9N3674)(Ind. 79.8 mm, Exd. 108. mm, Trm 9., 6+6 Blades, Superback)(1200016471) $92.80 NEW IN STOCK
Back plate408487-0013 (6N7962)(1300016142) $135.20 NEW IN STOCK
Heatshield Number441096-0001 (2030016145) $19.96 NEW IN STOCK
Repair Kit468103-0000 (3545824)(5000010008) $87.20 NEW IN STOCK
Turbine Housing441164-0024 (44164-0024)(9N2639) $404.00
Compressor Cover447209-0021
Turbine Housing AR1.37
Gasket (turbine inlet)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 470939, 20784537) $13.20
Gasket oil inlet 210161 (Paper) $2.00
Gasket (oil outlet) 210172 (Paper) $2.00
Gasket (water inlet and outlet) 210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027)(Paper) $4.48
NOTERestricted to Caterpillar
Manufacturer Honeywell-Garrett

Applications

Caterpillar Earth Moving with 3406 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
