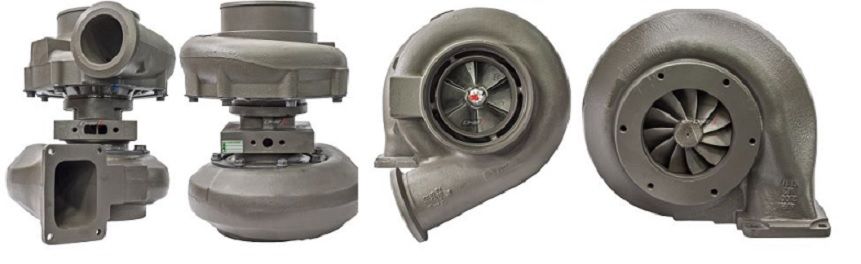

Caterpillar Earth Moving GT604101BL Turbo 700246-0001

Item# turbo-earth-moving-cat-TC-7002460001
$9,999.00
Availability: Usually ships the next business day
Currently Out of Stock. Call for information.

Product Description


Part Number700246-5001S
Previous Part Number700246-0001, 700246-0002
OE number0R7190, 1382305, 138-2305
DescriptionMachines Engine, Earth Moving, Dumpers, 793C Machinery
CHRA452705-0002 (452705-5002S)(0R7191, 1382309) $6897.22
Turbo ModelGT6041, GT604101BL
Engine3516B
Engine Model793C
Displacement69000 ccm, 16V Cylinders
FuelDiesel
Machines Engine3516, 3516B
Dumpers793C
S/N414-7TR296, 7TR1-UP, 7TR830-UP
Bearing Housing451488-0001 (Water Cooled) $1791.74 NEW IN STOCK
Turbine Wheel451447-0001 (Ind. 113. mm, Exd. 130. mm, Trm 21.6, 11 Blades) $1,570.60 NEW IN STOCK
Comp. Wheel700248-0001 (Ind. 105.7 mm, Exd. 141.2 mm, Trm 56, 6+6 Blades, Superback) $460.00
Back plate452703-0001 $137.19
Repair Kit705731-0001 $189.00 NEW IN STOCK
Turbine Housing449282-0002 (1336251) $1279.39
Compressor Cover451628-0003 (1382312) $1203.52
Turbine Housing AR 2.00
NOTEPartially restricted, 793C Dynamic Seal (High Pressure)
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth Moving 793C With 3516B Engine

Core Charge

There is a $900.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
