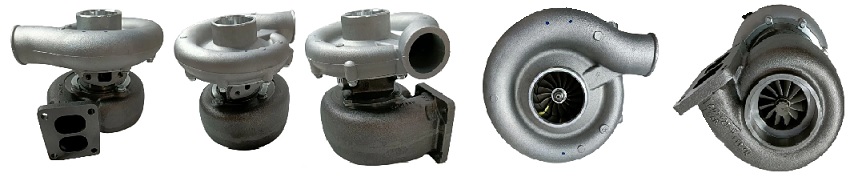

Caterpillar Earth Moving 3LM-289 Turbo 310134

Caterpillar Earth Moving 3LM-289 Turbo 310134
Item# turbo-earth-moving-cat-TC-310134
$1,176.06
Availability: Usually ships the next business day

Product Description


Part Number310134
Previous Part Number172494R, 182248, 182248R, 472494
OE number0R5808, 6N7924
Description955L-Traxcavator, 955L-Truck Crawler Loader, Marine
Manufacturer Part Number182248
CHRA310127 (182455 Replaces 178211, 182455R, 478211, 482455)(0R5909, 1N4365, 6N7926) $766.97 NEW IN STOCK
Turbo Model3LM-289
Prefix 64J, 85J, 13X, 80H
Serial #85J4999, 5001, 5002, 5004, 5005, 5006, 5011, 5013, 5175, 5178, 5182, 5186
Model #955L, 955K, 941, 941B
Engine3304
Fuel Diesel
Machine Engine3304
Track-Type Loader 955K, 955L
Serial No. 43V12994-UP, 48V25234-Up, 43V11980~43V12993, 57M00001-UP, 71J04558-UP, 13X00001-UP, 85J09510-UP, 08Y00001-UP, 64J07632-UP
Bearing Housing157914 (158049)(0R5402, 6N1529)(Oil Cooled)(1900011462) $164.51 NEW IN STOCK
Turbine Wheel187280 (158396)(6N1532)(Ind. 68.55 mm, Exd. 80.5 mm, Trm 40.61, 12 Blades)(1100016441) $287.25 NEW IN STOCK
Comp. Wheel155922 (6N7927) $194.28 NEW IN STOCK
Back plate197652 (310010, 311708, 4N6863, 6N1527, 104244-0000, 408045-0034, 408206-0002, 408045-0051)(1100040360) $19.72 NEW IN STOCK
Heat shield Number188276 (6N1531) $19.72 NEW IN STOCK
Repair Kit318368 (183223, 318385, 188210-0000)(6N7242)(1251133750) $124.00 NEW IN STOCK
Turbine Housing157926 (0R5411, 6N1521) $294.00
Compressor Cover158142 (6N7925) $247.52
Turbine Housing AR3.60
Gasket (turbine inlet)310694 (407294-0001) $13.84
Gasket (oil outlet)311496 (409037-0000, 210021-0000, 413671-0000, 210021, 210021) $4.34
Gasket (oil inlet)147837 (409036-0000, 210023-0000, 55739, 210023) $4.75
Gasket Kit215079 (468186-0000, 104097-0000)(2090505134) $18.50
ManufacturerBorg Warner - 3K - Schwitzer

Applications

Caterpillar E955L-Traxcavator, 955L-Truck Crawler Loader With 3304 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
