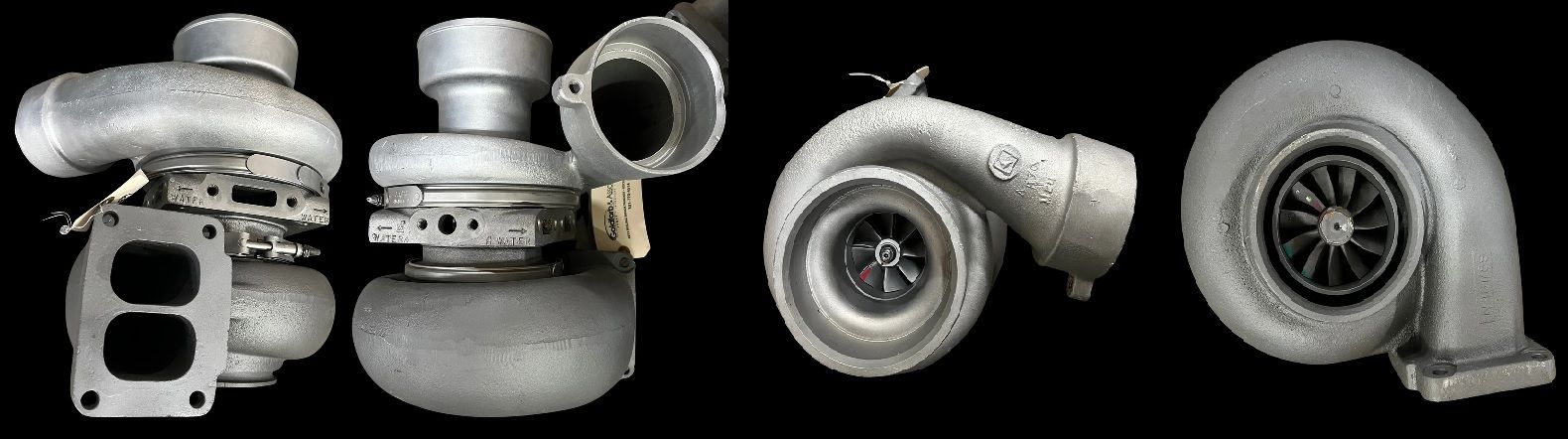

Caterpillar 621E Earth Moving TL6138 Turbo 466390-0001

Caterpillar 621E Earth Moving TL6138 Turbo 466390-0001
Item# turbo-earth-moving-cat-TC-4663900001
$2,698.00
Availability: Usually ships the next business day

Product Description


Part Number466390-5001S
Previous Version466390-0001, 466390-9001, 466390-1
OE number4W6725, 4W-6725, 0R5747
DescriptionIndustrial Engine, Generator, Earth Moving
CHRA 447364-0002 (447364-5002S, 447364-0003)(4W6726, 0R5767) $1606.94 IN STOCKK
Turbo Model TL6138
Prefix 2PD, 6AB, 6BB, 6CB, 6DB, 6EB
Engine 3406 DITAJWAC RM392621E
Displacement 14.6L. 14600 ccm, 6 Cylinders
Fuel Diesel
Wheel Tractor Scraper621E, 623E, 627E
Machine Engine3306, 3406
S/N 6AB00001-01427, 6CB00001-UP, 2PD00001-01010, 70V22151-99999
NSN2950-01-321-0548
Bearing Housing 444723-0001 (7N8188, 4P2943)(447159-0003)(Water Cooled)(1101481450) $298.66 NEW IN STOCK
Turbine Wheel408493-0008 (6N8632)(408493-0015)(Ind. 79. mm, Exd. 86.04 mm, 11 Blades) $413.68 NEW IN STOCK
Comp. Wheel409033-0012 (8N0818)(Ind. 66.51 mm, Exd. 94.02 mm, Trm 53/57, 8+8/6+6 Blades, Billet) $279.30 NEW IN STOCK
Back plate408487-0017 (8N0819)(331640848721, 408487-0021) $205.82 NEW IN STOCK
Heat shield Number 441094-0001 (1W4709)(2030016098) $101.41 NEW IN STOCK
Repair Kit468103-0000 (468173-0000, 9N2041, 3545824, 312325, 2W0715, 188400-0000, 468211-0000, 3545836, 188002-0000)(1101280750, 5000010008) $97.20 NEW IN STOCK
Turbine Housing 410736-0006 (408142-0038)(7W7224, 8N0820) $747.63
Compressor Cover409603-0016 (407009-0141)(8N0821) $497.71
Turbine Housing AR1.75
Gasket oil inlet210161 (Paper) $2.00
Gasket (turbine inlet)409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003) $15.49
Gasket (oil outlet)210172 (Paper) $2.00
Gasket (Water inlet & outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000) $4.00
Listed3289.55
ManufacturerHoneywell-Garrett

Applications

Caterpillar 621B, 621E Earth Moving with 3406 DITAJWAC RM392621E Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
