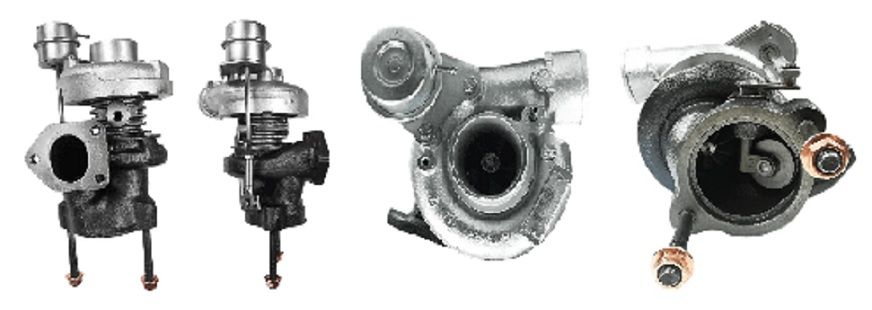

1996-03 BMW 5, 7 Series TD04 Turbo 49177-06452

Item# turbo-car-bmw-TC-4917706452
$960.15
Availability: Usually ships the next business day

Product Description


Part Number49177-06452
Previous Version49177-06450, 49177-06451, 49177-06451, 4917706452
OE number11652246739, 2246144, 2246739, 11652246144, 11652246588, 2246588
DescriptionBMW 5, 7 Series
CHRA49177-09660 (49177-09650, 49177-09662, 49177-09663)(1401404905, 1000050111) $295.00 NEW IN STOCK, MADE IN USA
Turbo ModelTDO4-13T/4, TD04
Engine M51D25
Engine Manufacturer BMW
Displacement2.5L, 2503 ccm, 6 Cylinders
KW 105/143
Fuel Diesel
Bearing Housing49177-25700 (49177-20610)(1401404453, 1900011152C) $42.00 NEW IN STOCK
Turbine Wheel49177-30120 (49177-30130, 49177-30200)(Ind. 47.19 mm, Exd. 40. mm, 12 Blades)(1100030029) $95.00 NEW IN STOCK
Comp. Wheel49189-43400 (49377-00017, 49377-00018)(Ind. 40.61 mm, Exd. 56.03 mm, 6+6 Blades, Superback)(1200030059) $49.62 NEW IN STOCK
Back plate49135-15405 (1800016016) $19.28 NEW IN STOCK
Heat shield Number 49170-19100 (2030016010) $14.64 NEW IN STOCK
Repair Kit49177-80410 (5000050007) $98.80 NEW IN STOCK
Turbine Housing 49177-16380
Compressor Cover49377-00082
Turbine Housing AR 4.0
Actuator49377-18816 $129.00
Settings waste gate (pressure)1.536-1.563/1.635-1.695
Settings Waste gate (lift shaft)1.00/5.00 mm
Gasket (turbine inlet)210563 (Inox Steel) $11.28 NEW IN STOCK
Gasket (oil outlet) 210243 (Paper) $3.32
Gasket Kit(2090505192) $18.99
ManufacturerMitsubishi

Applications

1996-03 BMW 5, 7 Series, 525 TDS with M51D25 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
