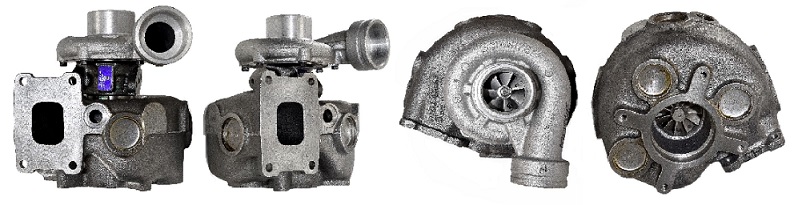

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1999-06 Deutz, Volvo Heavy Duty Earth Moving S2BW Turbo 317759
Product Description
| Part Number | 317759 |
| OE number | 04229605KZ, 4229605KZ, 888788, 0422-9605, 0422-9605KZ, 27C07-0132 |
| Year | 1999-06 |
| Description | Deutz Heavy Duty Earth Moving Volvo Construction Heavy Duty |
| Manufacturer Part Number | 317638 |
| CHRA | 315374 (315331, 316790, 315374R, 01319242, 01319242KZ, 1319242, 1319242KZ) $809.03 NEW IN STOCK |
| Turbo Model | S2BW |
| Engine | BF6M1013ECW |
| Displacement | 7.15L, 7150 ccm |
| KW | 166/223 |
| Fuel | Diesel |
| Angle a (compressor housing) | 343º |
| Angle ß (turbine housing) | 90º |
| Bearing Housing | 314562 (166440, 312485)(Oil cooled) $76.00 NEW IN STOCK |
| Turbine Wheel | 313819 (Ind. 60.6 mm, Exd. 69.5 mm, 10 Blades) $320.00 NEW IN STOCK |
| Comp. Wheel | 197922 (198271, 311669)(Ind. 52.1 mm, Exd. 76.2 mm, Trm 7.6, 7+7 Blades, Superback) $198.82 NEW IN STOCK |
| Back plate | 197340 $20.12 NEW IN STOCK |
| Heat shield Number | 194149 (2030016078) $14.64 NEW IN STOCK |
| Repair Kit | 318381 (313076, 313654, 313922, 315362)(5000030002) $119.21 NEW IN STOCK |
| Turbine Housing (water Cooled) | 317671 |
| Compressor Cover | 317861 |
| Gasket (turbine inlet) | 409039-0000 (210022-0000, 2405022)(Inox Steel) $13.52 |
| Gasket (turbine outlet) | 210245 (Inox Steel) $4.48 |
| Gasket oil inlet | 210023 (147837, 215234, 409036-0000, 210023-0000, 55739)(1900000037) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) $4.48 |
| Gasket Kit | 318419 (318420)(2090505007) $17.44 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
1999-06 Deutz Earth Moving with BF6M1013ECW Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
