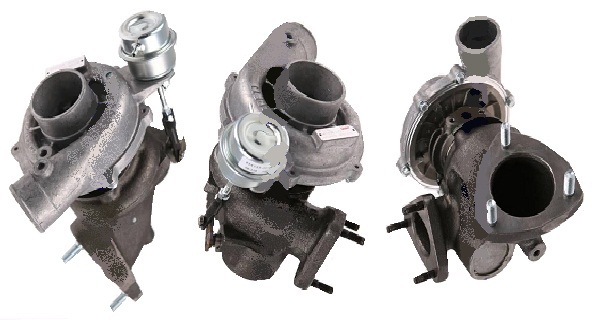

1998-09 Land Rover Discovery, Defender GT2052S Turbo 452239-0009

1998-09 Land Rover Discovery, Defender GT2052S Turbo 452239-0009
Item# turbo-car-land-rover-TC-4522390009
$998.00
Availability: Usually ships the next business day

Product Description


Part Number452239-5009S
Previous Version452239-0003, 452239-0005, 452239-0006, 452239-0008, 452239-0009, 452239-5006S, 452239-5008S, 452239-9
OE numberPMF500040, PMF100460, PMF100410, LR005955, LR006595, LR017315
Year 1998-09
DescriptionDefender TD5, Discovery TD5, Rover 75
CHRA433467-0017 (433467-5017S) $399.00 NEW IN STOCK, MADE IN USA
Turbo ModelGT2052S
Engine "L" series, MDI 525,
Engine Manufacturer Land Rover
Displacement2.5L, 2500 ccm, 5 Cylinders
KW90/136/122
RPM Max4200
FuelDiesel
Angle a (compressor housing) 346º
Angle ß (turbine housing) 90º
Bearing housing435911-0002/713782-0003 $72.88 NEW IN STOCK
Turbine Wheel434715-0013 NEW IN STOCK
Comp. Wheel 451584-0007 NEW IN STOCK
Back plate436466-0002 NEW IN STOCK
Heat Shield434684-0001 $12.50 NEW IN STOCK
Repair Kit732252-0001 $97.60 NEW IN STOCK
Turbine Housing436173-0009
Compressor Cover436468-0006
Actuator434133-0046
Turbine Housing AR0.46
Settings Waste gate (pressure)1.260 - 1.310 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)210332
Gasket (turbine outlet)210333
Gasket (oil outlet)210243
452239-0009 Also directly replace 452239-0009 turbo and an alternative replacement for -0008, -5006S, -0005 and -0003 turbos
ManufacturerHoneywell-Garrett

Rover Built Engine. Not interchangeable with BMW unit

Applications

Land Rover Defender Td5 with "L" series - MDI 525 Engine

1998- Land-Rover Defender 2.5L TDI TD5 Engine MDI 525

1998-04 Discovery MDI 525 15P /16P 2 TD5 (Automatic) Engine

1999- Land-Rover Discovery II 2.5L TDI Engine Td5

2002- Land-Rover Discovery II 2.5L TD5 Engine MDI 525

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
